Fujitsu Oracle SPARC M12-2 User Manual

Table B-2
USB 2.0 Port (Front)
Pin Arrangement Pin
Number
Signal
Name
Input/Output Description
1
2
3
4
1 VBUS Output Power supply
2 -DATA Input/
Output
Data
3 +DATA Input/
Output
Data
4 GND --- Ground
Table B-3
USB 3.0 Port (Rear)
Pin Arrangement Pin
Number
Signal
Name
Input/Output Description
1234
56789
1 VBUS Output Power supply
2 -DATA Input/
Output
Data
3 +DATA Input/
Output
Data

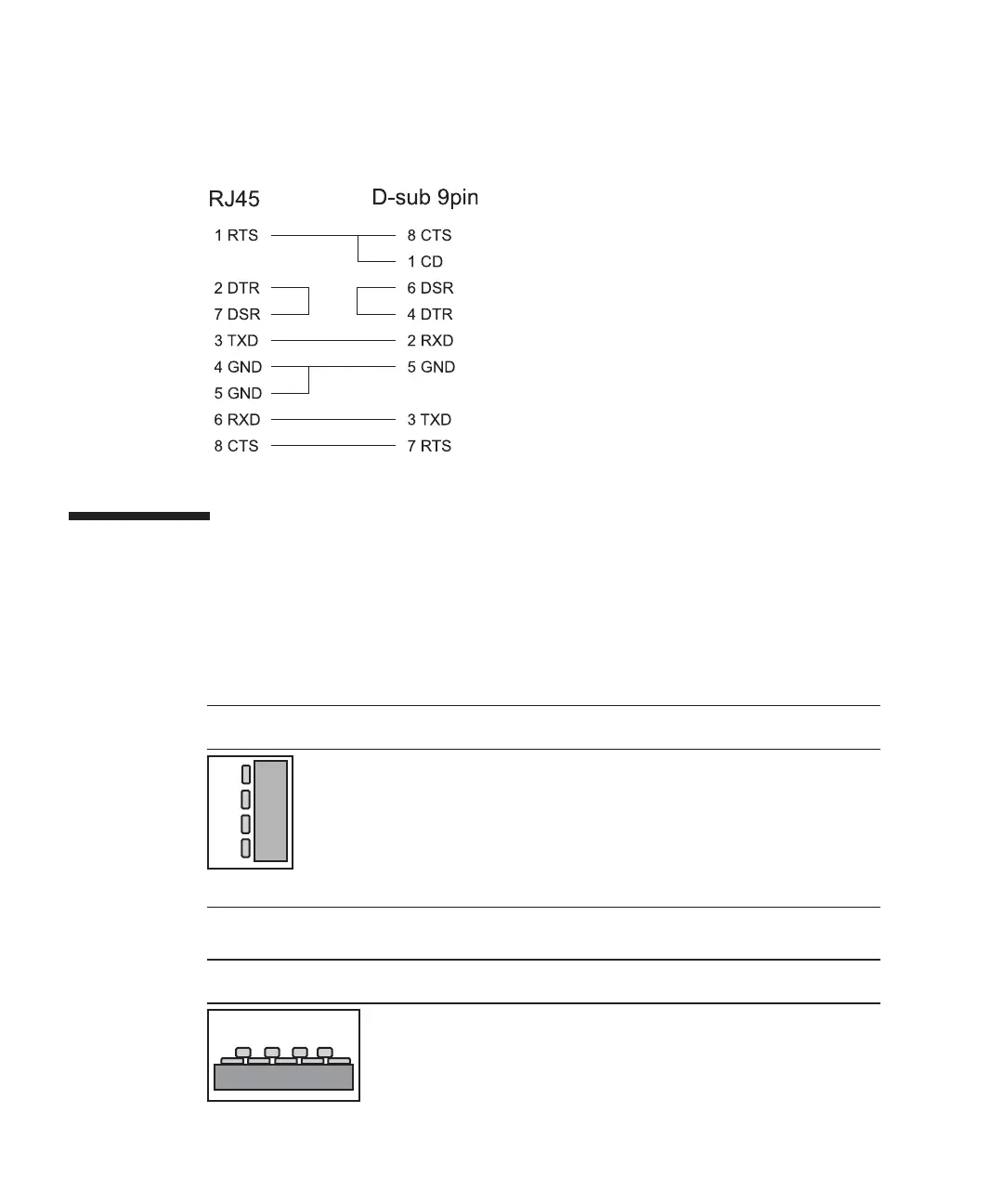

B.1.1 Wire Connection Chart for Serial Cables
Figure B-1
Wire Connection Chart for Serial Cables
B.2 USB Port
Table B-2, Table B-3, and Table B-4 list the specifications of the USB port on the
SPARC M12-2/M12-2S.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023530
