Fujitsu Oracle SPARC M12-2 User Manual

Note -
The system shown in the illustrations provided herein is the SPARC M12-2S. Unless
otherwise noted, the locations of the fixing screws and other details are common to the
SPARC M12-2.
Positioning pin
Positioning hole
a.
b.
Cable guide
18.5.1 Installing the PSUBP in the BPU
This section describes the procedure for installing the PSUBP in the BPU.
1.
Install the PSUBP in the BPU.
a. Hold the PSUBP horizontal and route the cable through the cable guide of the
BPU.
b. While holding the PSUBP horizontal, lower it straight with the positioning
hole of the PSUBP aligned with
the positioning pin of the BPU. Install the
PSUBP in the BPU. Make sure that the fixing screw holes of the PSUBP are
aligned with those of the BPU.

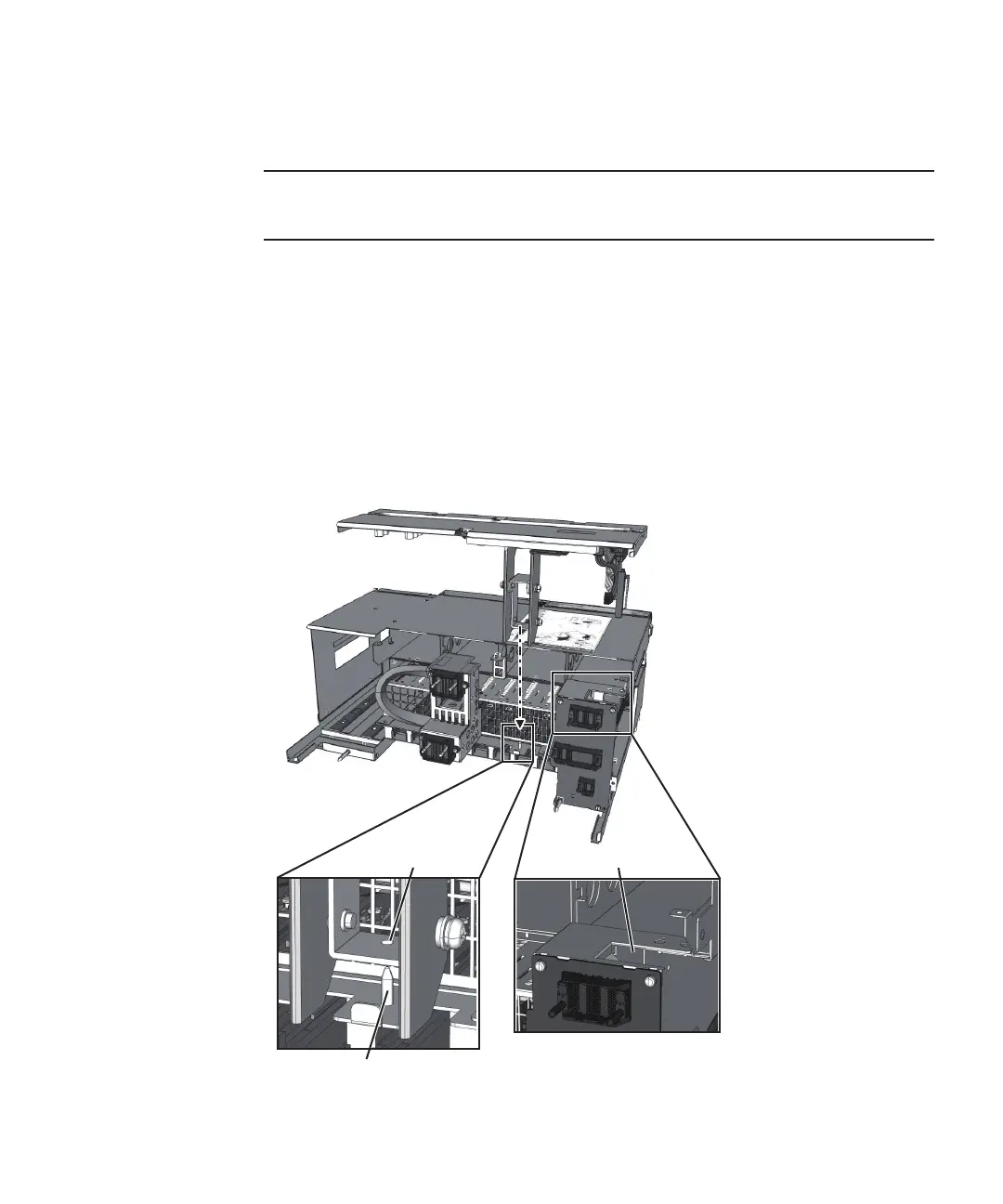

Figure 18-17
Installing the PSUBP
Chapter 18 Maintaining the Backplane Unit and PSU Backplane Unit 475
