Note
-
The
system
shown
in
the
illustrations
provided
herein
is
the
SPARC
M12-2S.
Unless
otherwise
noted,
the
locations
of
the
fixing
screws
and
other
details
are
common
to
the
SPARC
M12-2.
A
18.4.3 Removing
the
PSUBP
From
the
BPU
This
section
describes
the
procedure
for
removing
the
PSUBP
from
the
BPU.
1.
Remove
the
connector
cover.
To
remove
the
connector
cover,
loosen
the
fixing
screw
of
the
connector
cover
(A
in
Figure
18-14)
on
the
left
side
of
the
BPU
and
slide
the
connector
cover
toward
you.

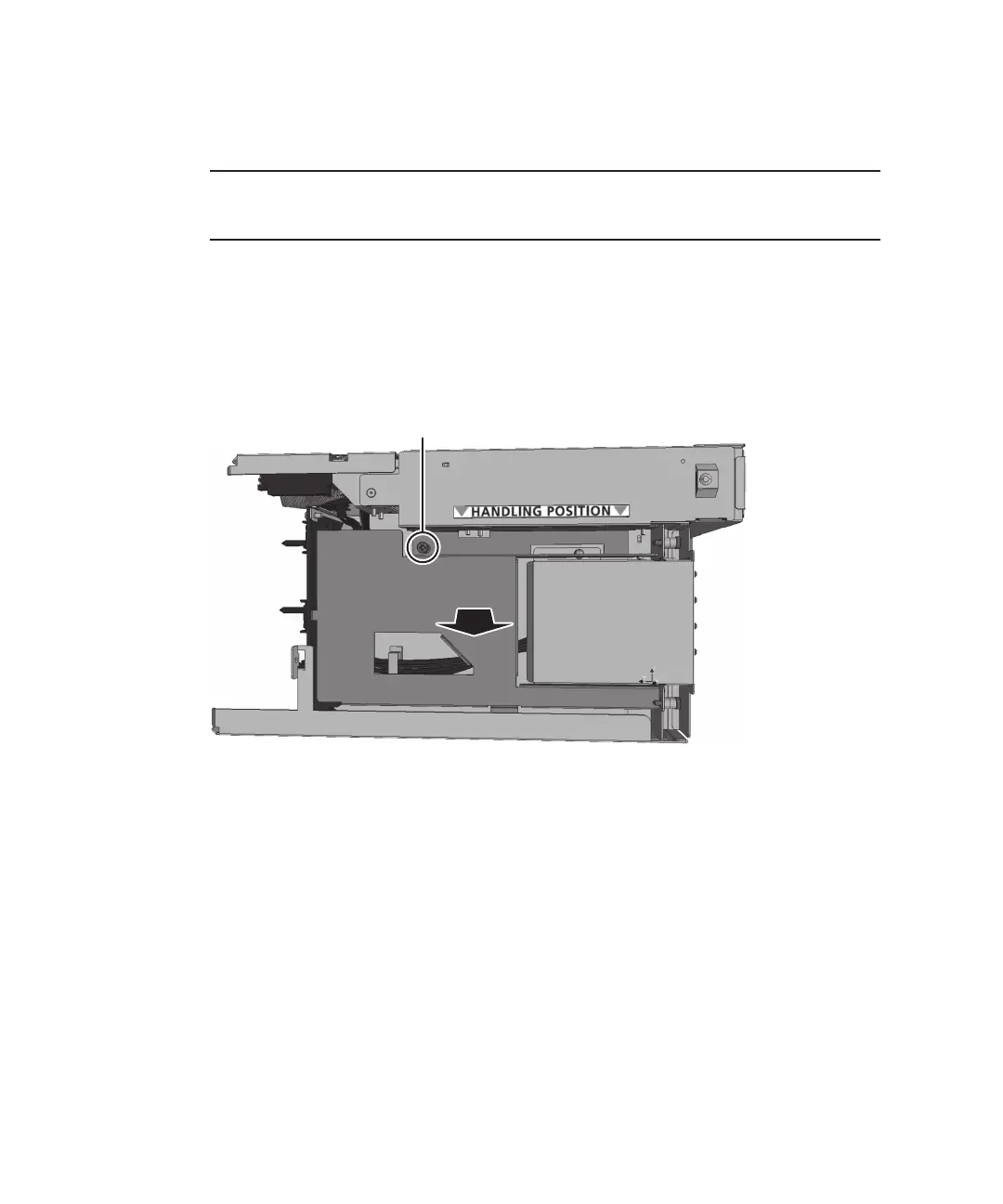

Figure
18-14
　　
Removing
the
Connector
Cover
2.
Remove
the
PSUBP
and
BPU
connectors.
There
are
two
connectors
that
connect
the
BPU
and
PSUBP.
First,
close
the
latches
on
both
sides
of
the
connector
(brown)
shown
in
A
of
Figure
18-15,
and
remove
the
connector.
Next,
pull
out
the
connector
(black)
shown
in
B
of
Figure
18-15
while
pressing
its
latches.
Fujitsu
SPARC
M12-2/M12-2S
Service
Manual
ï½¥
January
2023472
