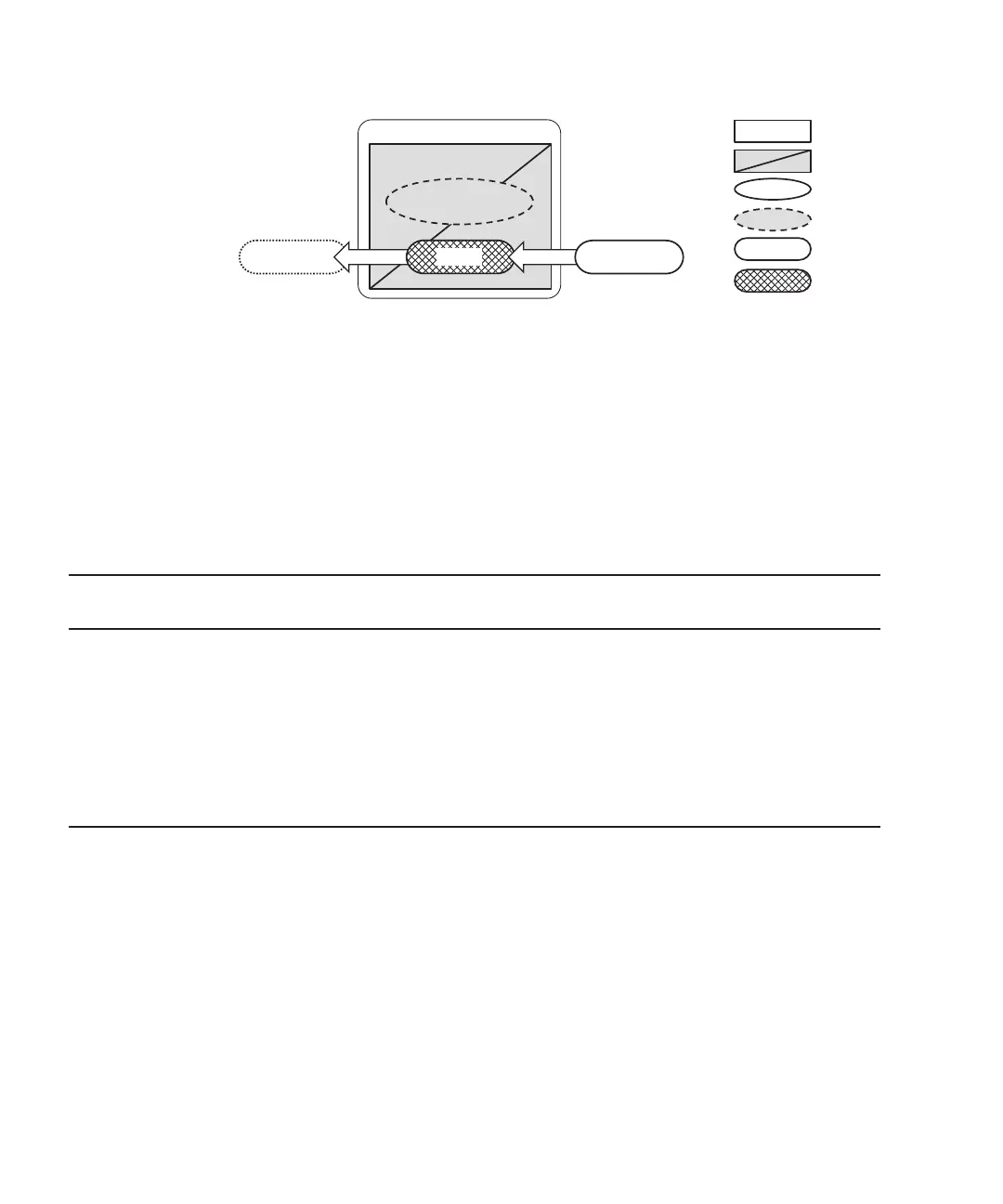

PPAR#00
Oracle Solaris
FRU
FRU
SPARC M12-2S
Hot
Cold
Running
Stopped
Normal
Faulty
(1) Removal of the
faulty FRU
(2) Installation of the
replacement FRU
Table 3-9
Applicable Types of Maintenance in FRU Addition to the SPARC M12-2S (1BB Configuration)
-: Not applicable
FRU Active Addition Inactive Addition System-Stopped Addition
Hot Cold Hot Cold Hot Cold
PCIe card OK---OKOK
HDD/SSD OK - - - OK OK
CMUU -- -- -OK
Memory -- -- -OK
PCI expansion unit
(chassis)
OK---OKOK
SPARC M12-2S (*1) - OK (*2) - OK (*3) - OK (*4)
*1 The XSCF DUAL control cable, XSCF BB control cable, and crossbar cable need to be connected.
*2 When adding a SPARC M12-2S unit by using the PPAR DR function for the physical partition where Oracle Solaris is operating on the
existing SPARC M12-2S (1BB configuration)
*3 When adding a SPARC M12-2S
unit into a physical partition different from the physical partition where Oracle Solaris is operating on
the existing SPARC M12-2S (1BB configuration)
*4 When adding a SPARC M12-2S unit when the existing physical partition is stopped
Figure 3-12
System-Stopped/Cold Replacement in the SPARC M12-2S (1BB
Configuration)
3.3.2 Types of Maintenance for FRU Addition (SPARC
M12-2S in the 1BB Configuration)
Table 3-9 lists the FRUs that can be added to the SPARC M12-2S (1BB configuration)
and the applicable types of maintenance in the addition of each FRU.
Active/Hot addition
Figure 3-13 shows the state of the system during active/hot addition in the SPARC
M12-2S (1BB configuration).
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 202350
