Caution -
Do not pull the XSCF DUAL control cable itself. Otherwise, the cable may
be damaged and the system may fail to operate normally.

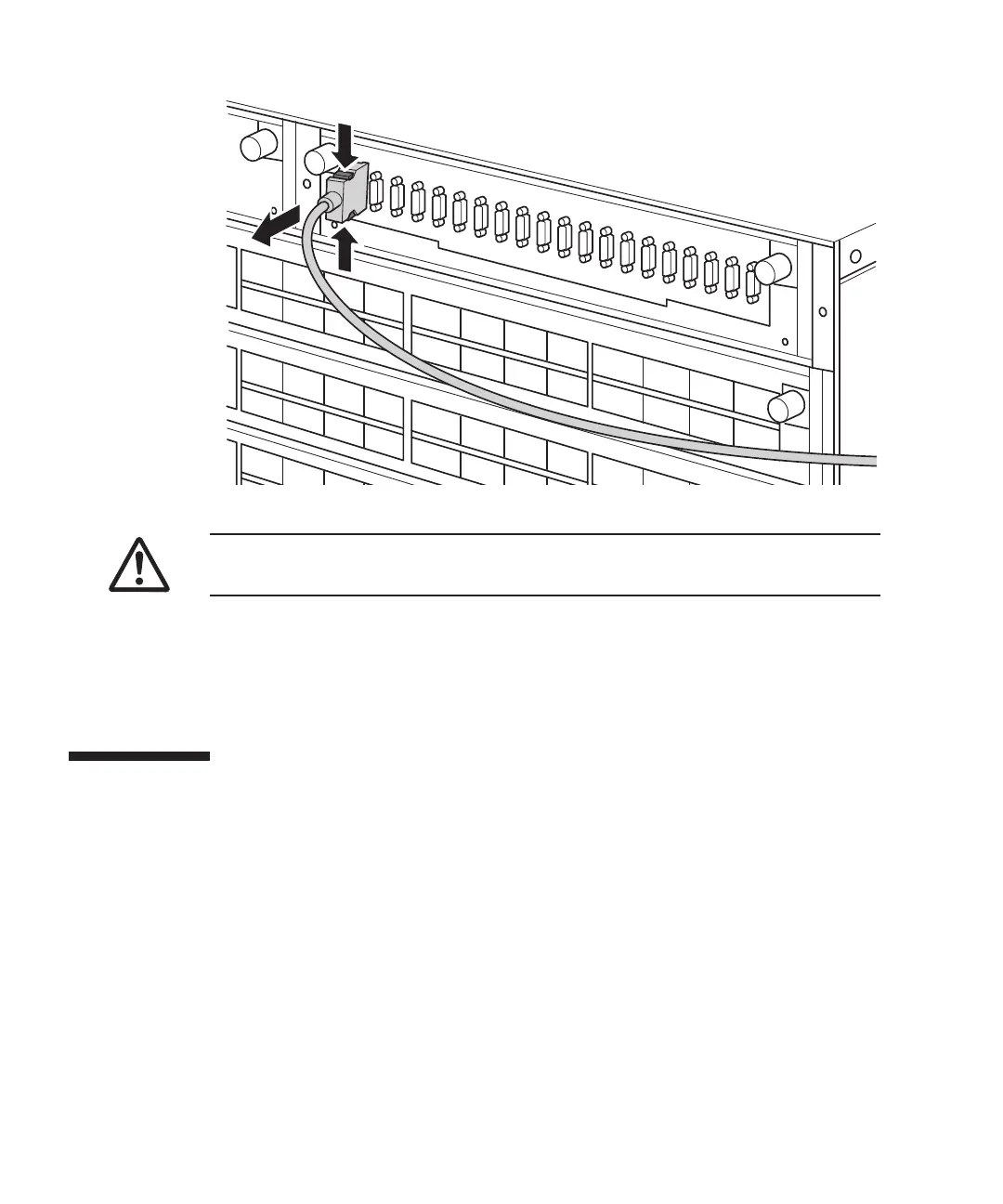

Figure 21-6
Removing the XSCF DUAL Control Cable (Crossbar Box)
5.
Remove the XSCF DUAL control cable from the other chassis.
Pull out the XSCF DUAL control cable (in the direction of arrow 2 in Figure 21-6)
while pushing in the latches on both sides of the cable (in the directions of
the
arrows marked 1 in Figure 21-6).
21.4 Installing the XSCF DUAL Control
Cable
This section describes the procedure for installing the XSCF DUAL control cable.
1.
Affix labels to the XSCF DUAL control cable.
Affix the labels filled out in step 2 of "21.3 Removing the XSCF DUAL Control
Cable" to the XSCF DUAL control cable (Figure 21-7).
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023514
