Caution -
When removing the PCICS, be careful not to bend its lever. If the lever is
bent, you may not be able to secure the PCICS to the server or PCI expansion unit.
Note -
Place the removed PCICS on the grounded ESD mat to ground any static electricity.
A
2
1
1

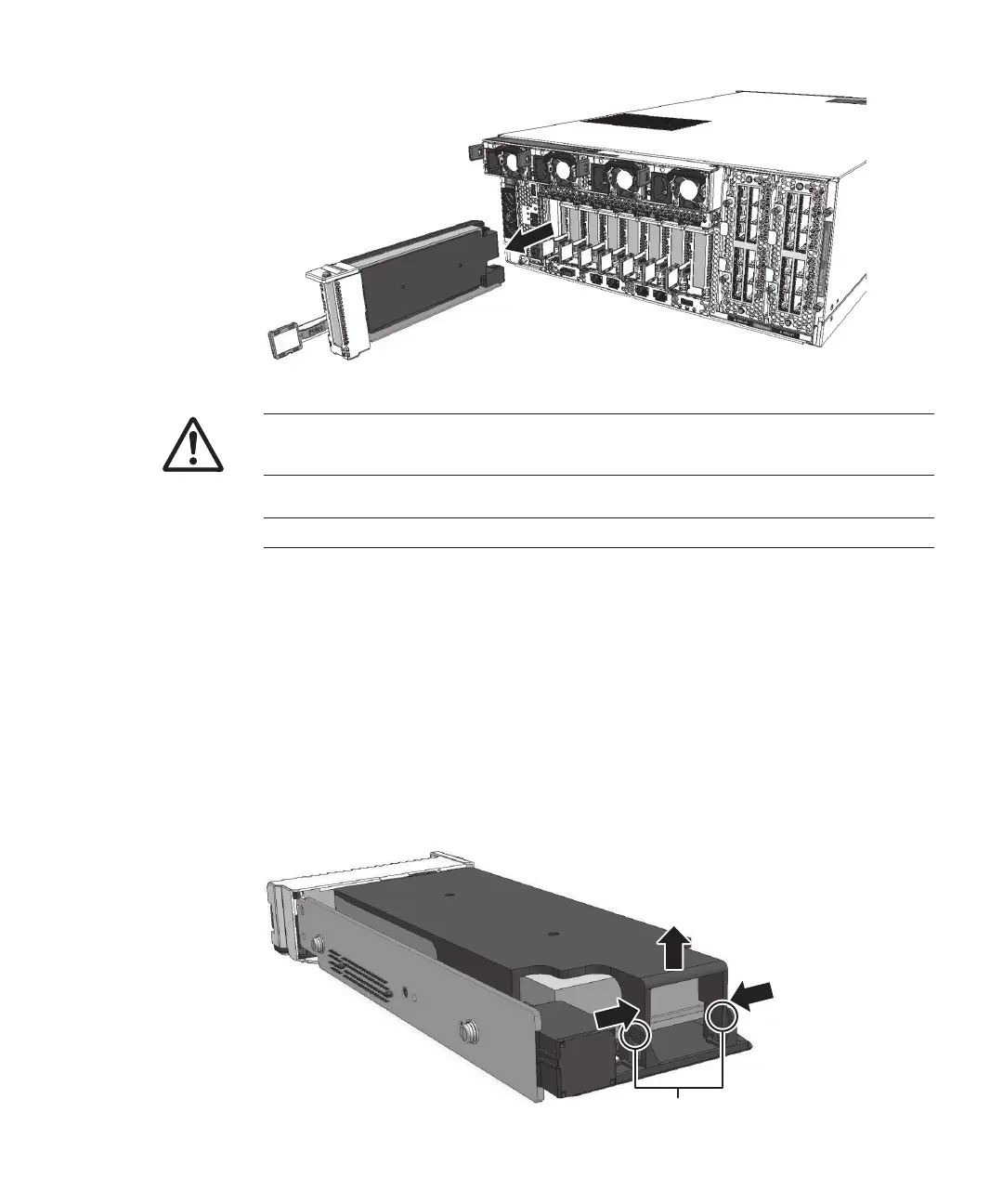

Figure 12-5
Removing the PCIe Card
12.3.2 Removing a PCIe Card or PCIe Card Filler
This section describes the procedure for removing a PCIe card or PCIe card filler
mounted in the PCICS.
1.
Remove the PCIe card cover.
Remove the PCIe card cover by pinching its lock (A in Figure 12-6) with your
fingers and lifting the cover while pushing the lock inside.
Figure 12-6
Removing
the PCIe Card Cover
Chapter 12 Maintaining PCIe Cards 389
