A
Note -
Store the fixing bracket and screw of the PCIe card in a safe place.
A
B
Note -
After removing the PCIe card filler, store it in a safe place.
2.
Remove the fixing bracket of the PCIe card.
Remove the screw of the fixing bracket (A in Figure 12-7) of the PCIe card, and
then remove the fixing bracket.

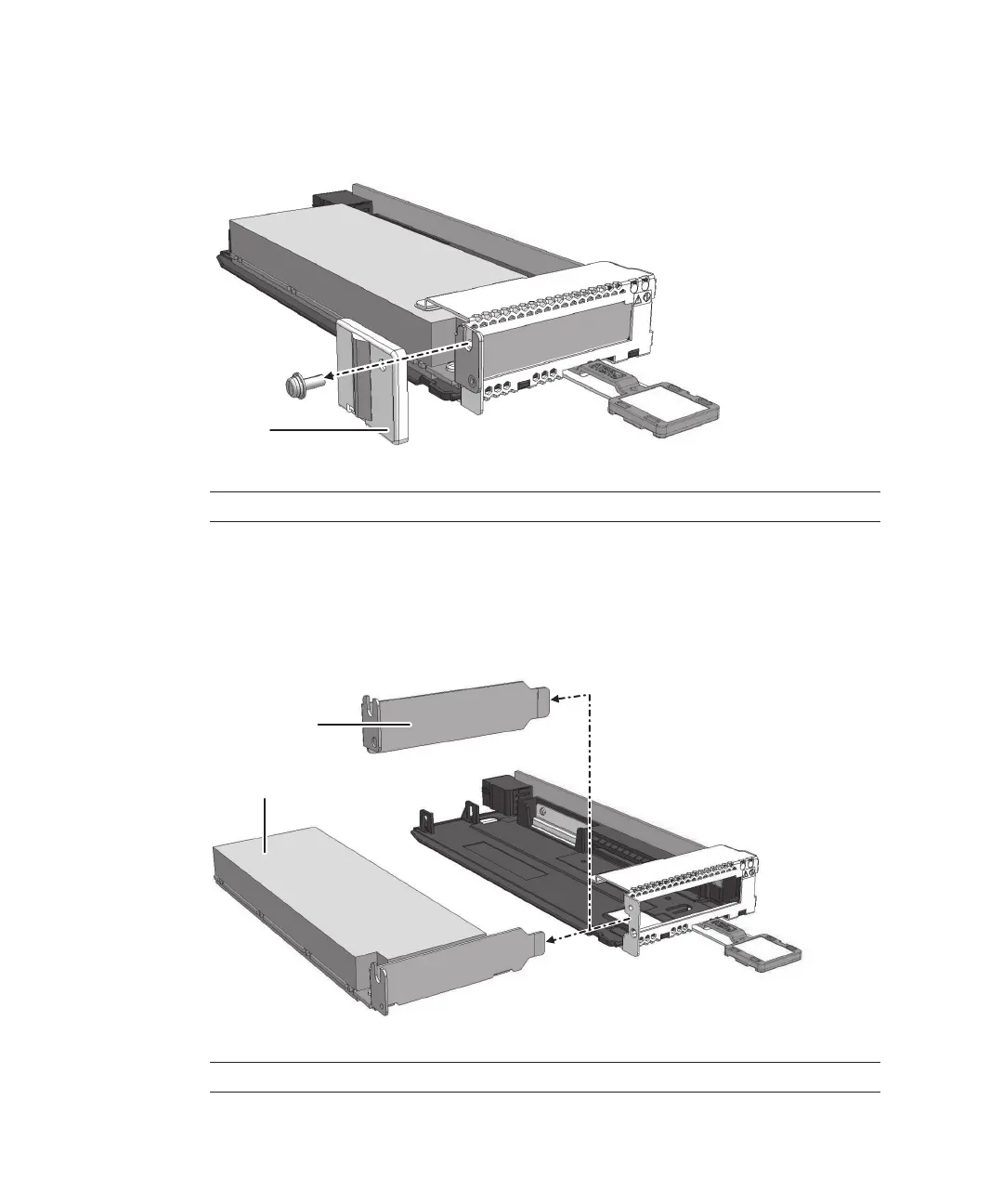

Figure 12-7
Removing the Fixing Bracket of the PCIe Card
3.
Remove the PCIe card.
Remove the PCIe card (A in Figure 12-8)
or the PCIe card filler (B in Figure 12-8)
from the PCICS.
Figure 12-8
Removing the PCIe Card
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023390
