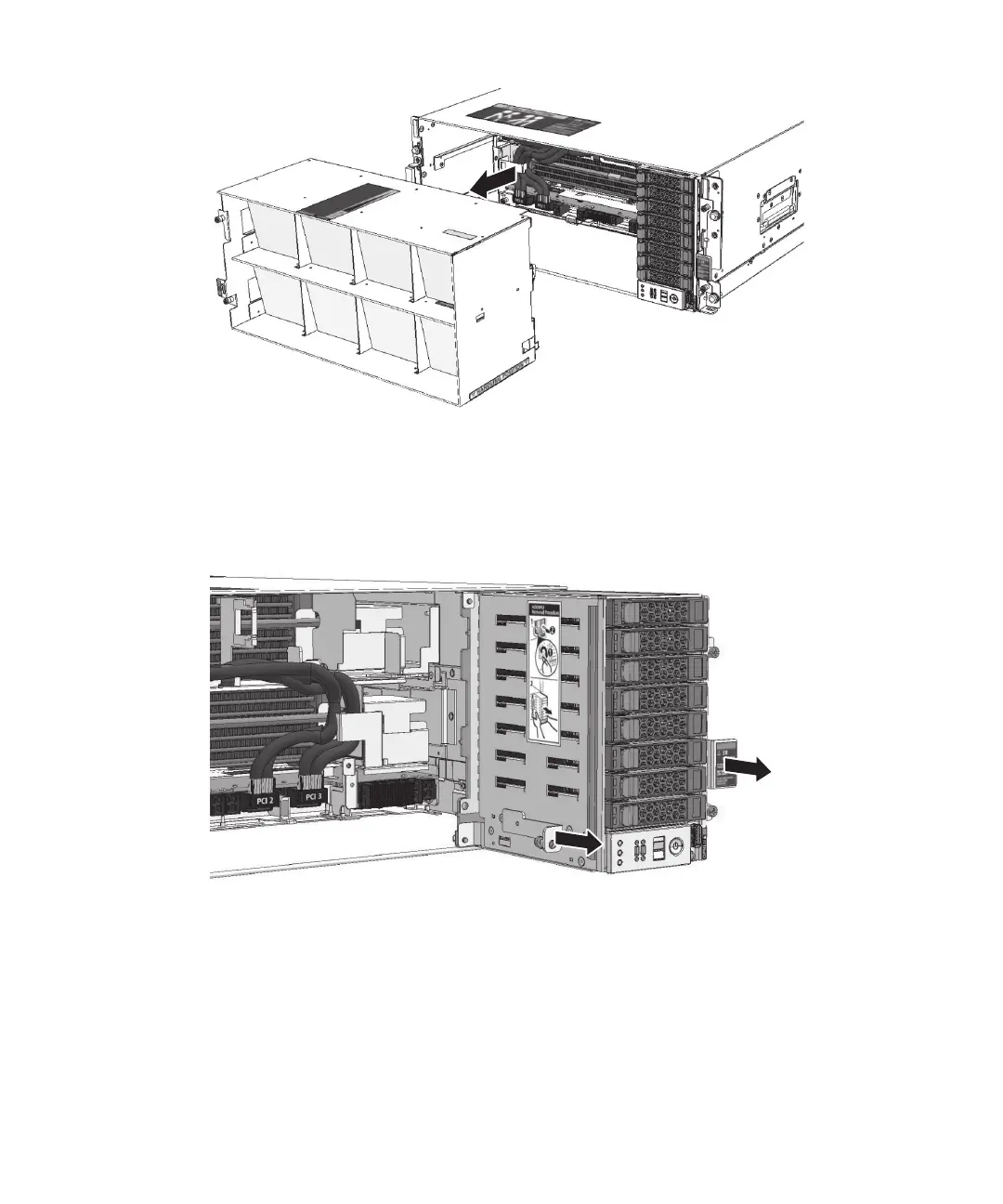

Figure 17-6
Removing the FANBPU
9.
Remove the HDDBPU.
For the procedure for removing the HDDBPU, see "16.3.2 Removing the
HDDBPU."
Figure 17-7
Removing the HDDBPU
17.4.2 Removing the CMU
This section describes the procedure for removing the CMU.
1.
Remove the PCIe cables from the cable guide.
Remove the PCIe cables from the cable guide. When the CMUU is not mounted,
this step is not necessary. Proceed to step 6.
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023442
