Caution -
Do not pull the cable when removing a connector. The cable may break.

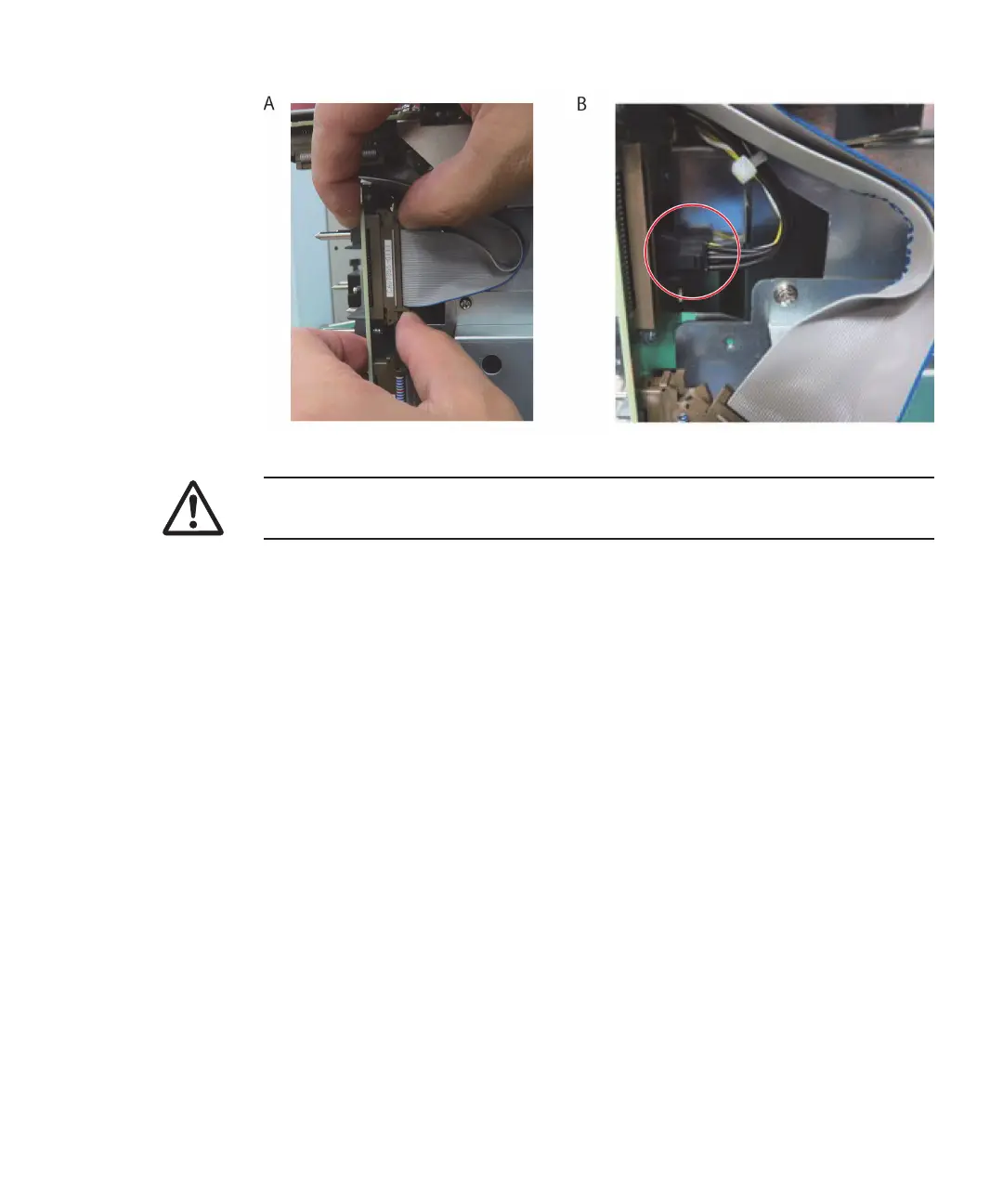

Figure 18-15
Removing the Connectors
3.
Remove the PSUBP.
a. Remove the three fixing screws. Store the removed fixing screws in a safe
place.
b. Keeping the PSUBP horizontal, lift it straight up until the positioning pin of
the BPU is out of the positioning hole of the PSUBP.
c. Remove the PSUBP
from the BPU while taking care not to get caught on the
connectors removed in step 2.
