Note -
Securing the PCICS to the server or PCI expansion unit prevents the PCICS from being
shaken off by an unexpected vibration or shock.

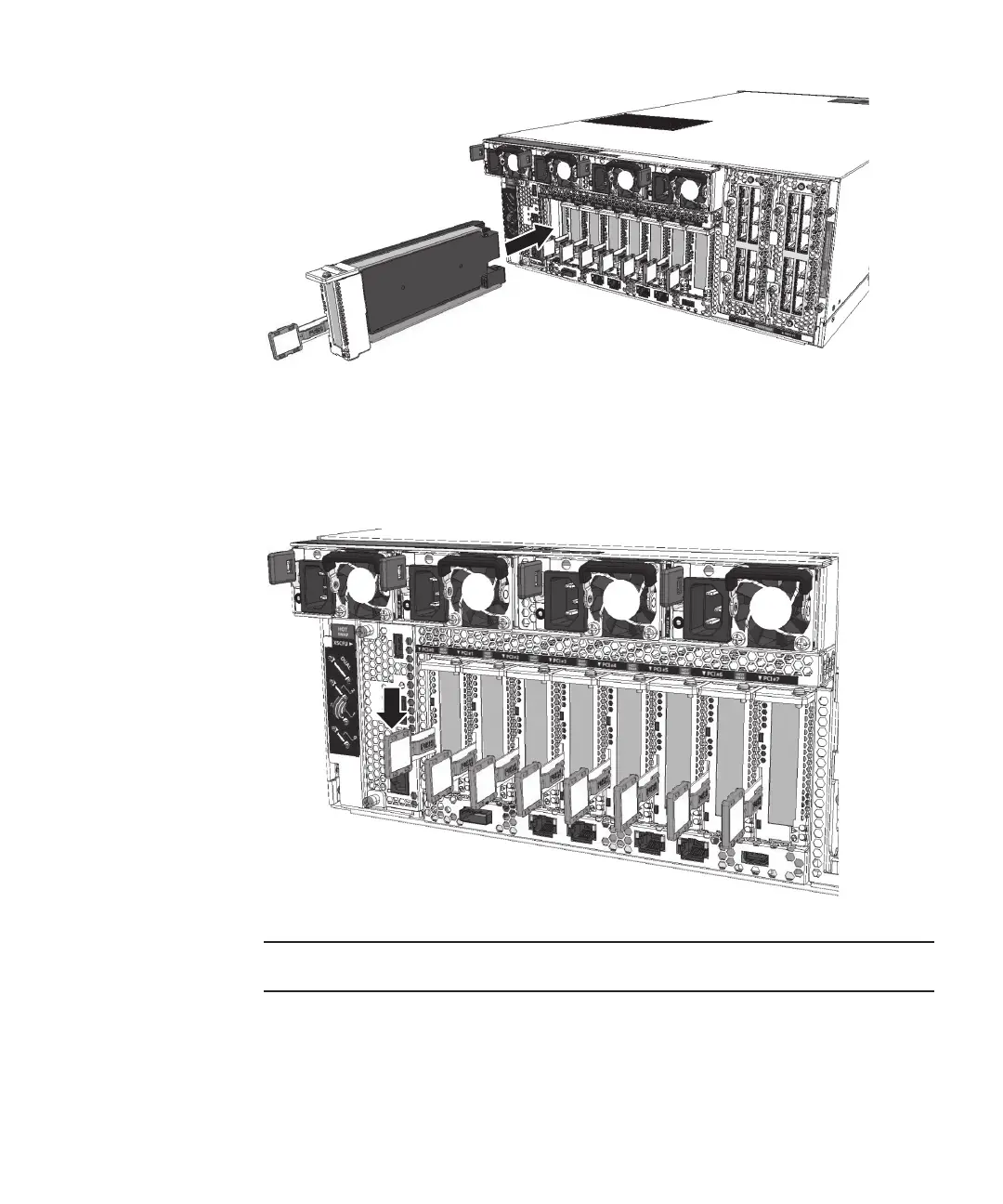

Figure 12-12
Installing the PCIe Card
5.
Secure the PCICS.
Lower the removal lever while pushing the latch of the PCICS to secure the
PCICS to the server or PCI expansion unit.
Figure 12-13
Securing the PCICS
6.
Connect the cables.
Connect the cable to the replacement or added PCIe card, and bundle the
cables
using the hook-and-loop fastener.
Chapter 12 Maintaining PCIe Cards 393
