Note -
Affix a label 10 cm (4 in.) away from the crossbar cable connector.
(1)
(1)
(1)
Number in
Figure
Description
1 Pull-tab
2.
Connect the crossbar cable to the XBUs.
Connect the crossbar cable to the XBU ports at the locations written on the labels.
There are four types of crossbar cables. Use only crossbar cables (optical) in
maintenance/expansion of a SPARC M12-2S that uses crossbar cables (optical).
Use only crossbar cables (electrical) in
maintenance/expansion of a SPARC
M12-2S that uses crossbar cables (electrical).
Connect crossbar cables of the same type to the same port numbers.
You can distinguish the type of crossbar cable by the pull-tab shape. (See Figure
19-9 and Figure 19-10.)

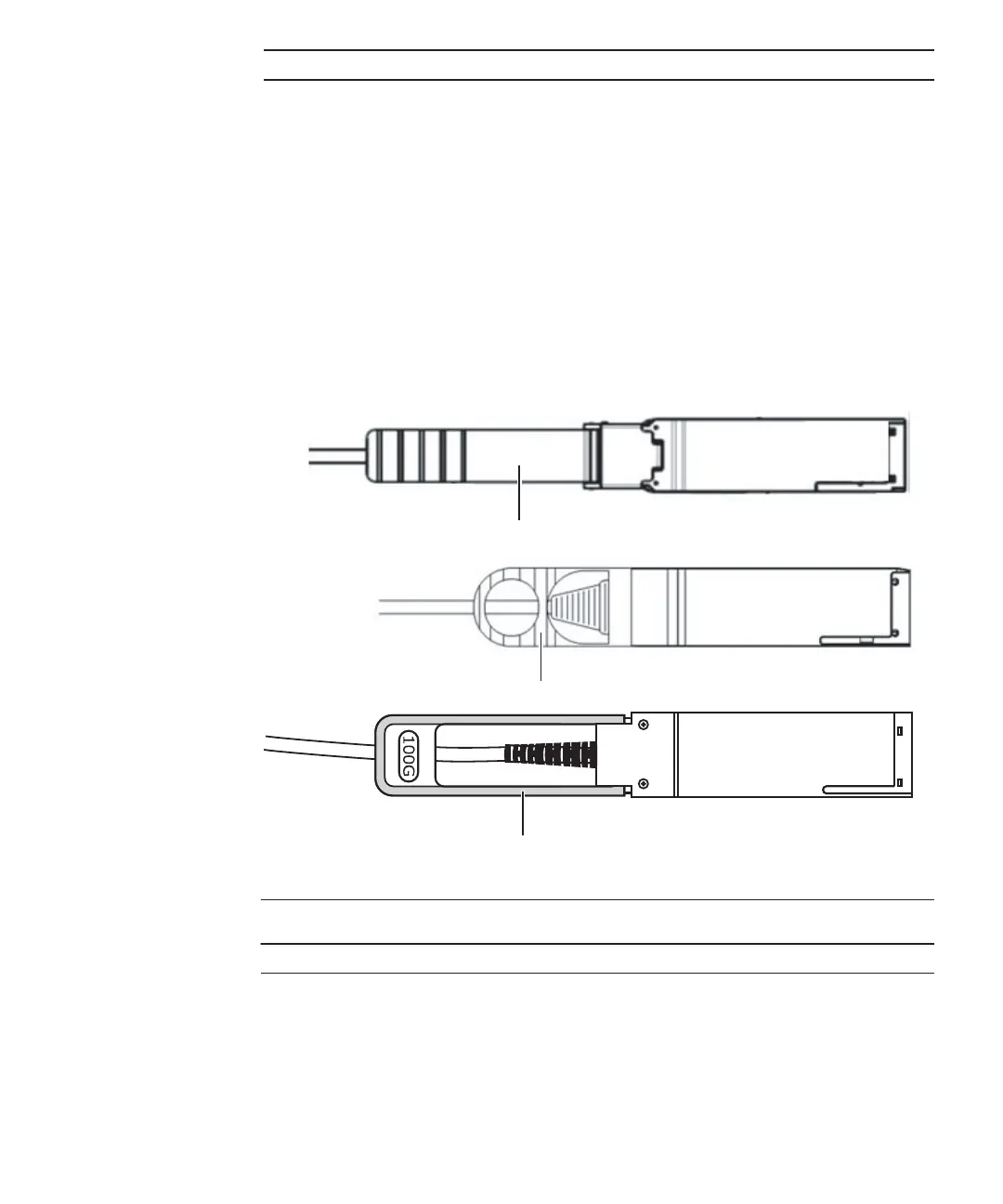

Figure 19-9
Crossbar Cable (Optical) Shapes and Pull-Tabs
Chapter 19 Maintaining the Crossbar Cable 497
