Caution -
When inserting the XSCFU into the server, make sure that no cable or other
foreign matter is caught between the two units. If so, the connector may be damaged.

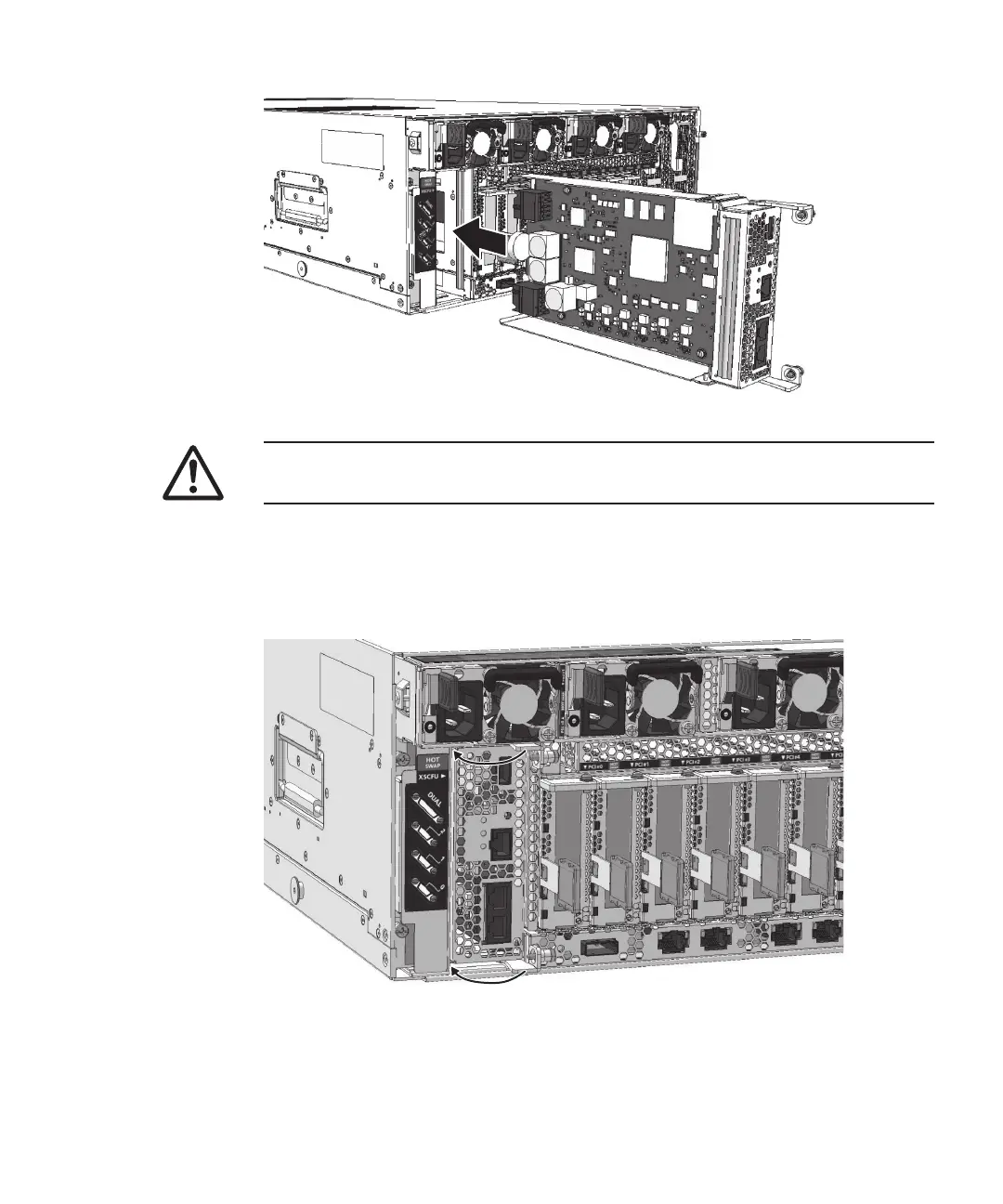

Figure 11-11
Inserting the XSCFU Into the Server
2.
Connect the XSCFU to the BPU.
Close the XSCFU levers to connect the XSCFU to the BPU.
Figure 11-12
Connector Connection of the XSCFU and BPU
3.
Secure the XSCFU.
Tighten the fixing screws in the levers (A in Figure 11-13) to secure the XSCFU.
