Caution -
Before connecting the HDDBPU to the connector of the CMU, confirm that
the HDDBPU is fitted to the positioning guide and does not move left or right.
Inserting the HDDBPU when it is not fitted to the positioning guide may damage the
connector.

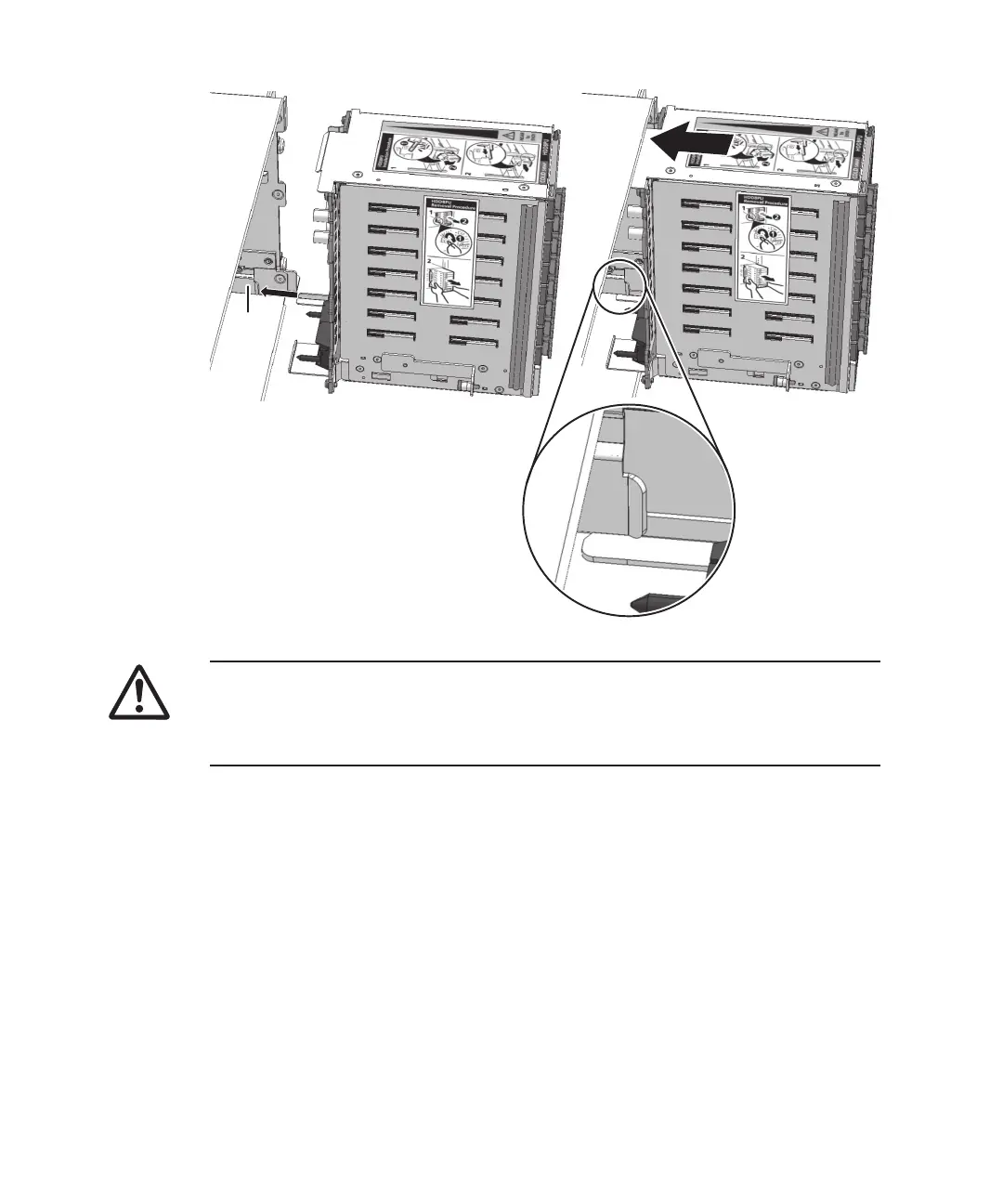

Figure 16-13
Inserting the HDDBPU
2.
Secure the HDDBPU to the server.
Return the removal lever of the HDDBPU to the state it was in before the
HDDBPU was removed. Then, tighten the three fixing screws shown in A in
Figure 16-14 to secure the HDDBPU.
