Fujitsu Oracle SPARC M12-2

A
B
HANDLING POSIOTION
NEAR to END
HANDLING POSIOTION
Note -
When removing the CMUU, be sure to bundle the PCIe cables using the cable clamps.
Note -
If you do not remove the CMUL, the following steps are not necessary.

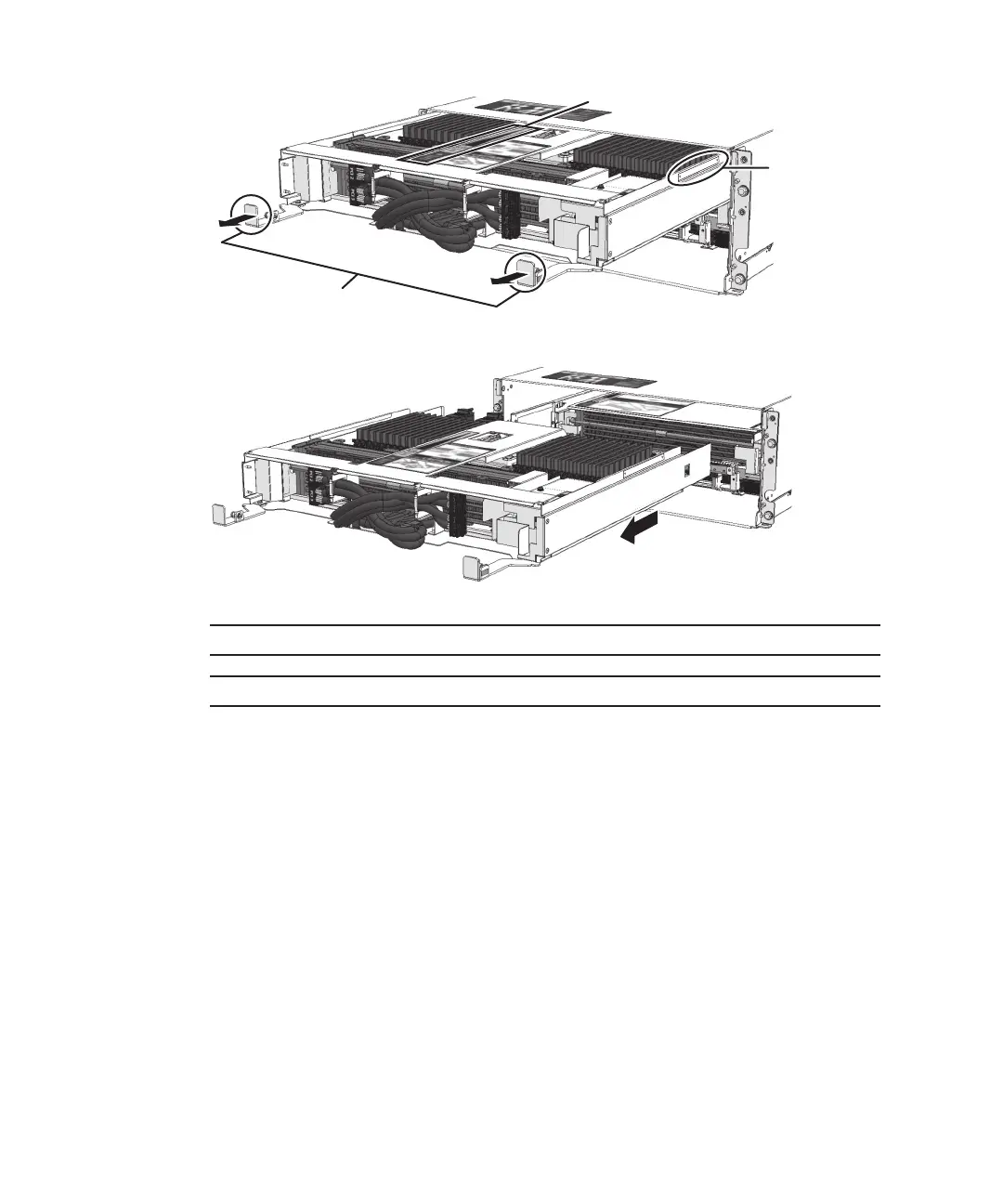

Figure 17-12
Removing the CMUU
6.
Remove the filler unit.
When the filler unit is not mounted, this step is not necessary. Proceed to step 7.
a. Hook your fingers over the top part of the CMU filter unit (A in Figure 17-13)
by inserting them into the gap there.
b. Pull out
the CMU filler unit by pulling it toward you.
