Table 2-13
System Operation Status Indicated by LEDs
Location
No.
Icon Name Color Description
1 POWER Green Indicates the operation status of the system
including the target SPARC M12-2/M12-2S.
- On: The system is running.
- Off: The system is stopped.
- Blinking: The system is being stopped.
2
XSCF
STANDBY
Green Indicates the status of the XSCF for the entire
system or for each SPARC M12-2/M12-2S.
- On: The XSCF is running.
- Off: The XSCF is stopped.
(This includes the state where it is
disconnected from the building block
configuration and stopped.)
- Blinking: The XSCF is being started.
3
CHECK Amber Indicates the operation status of the SPARC
M12-2/M12-2S.
- On: Hardware has detected an error.
- Off: The target SPARC M12-2/M12-2S is
operating normally. Or no power is being
supplied.
- Blinking: SPARC M12-2/M12-2S specified
when the XSCF command instructing the
blinking was executed. This (locator) is used to
identify the location
of the SPARC M12-2/
M12-2S requiring maintenance.

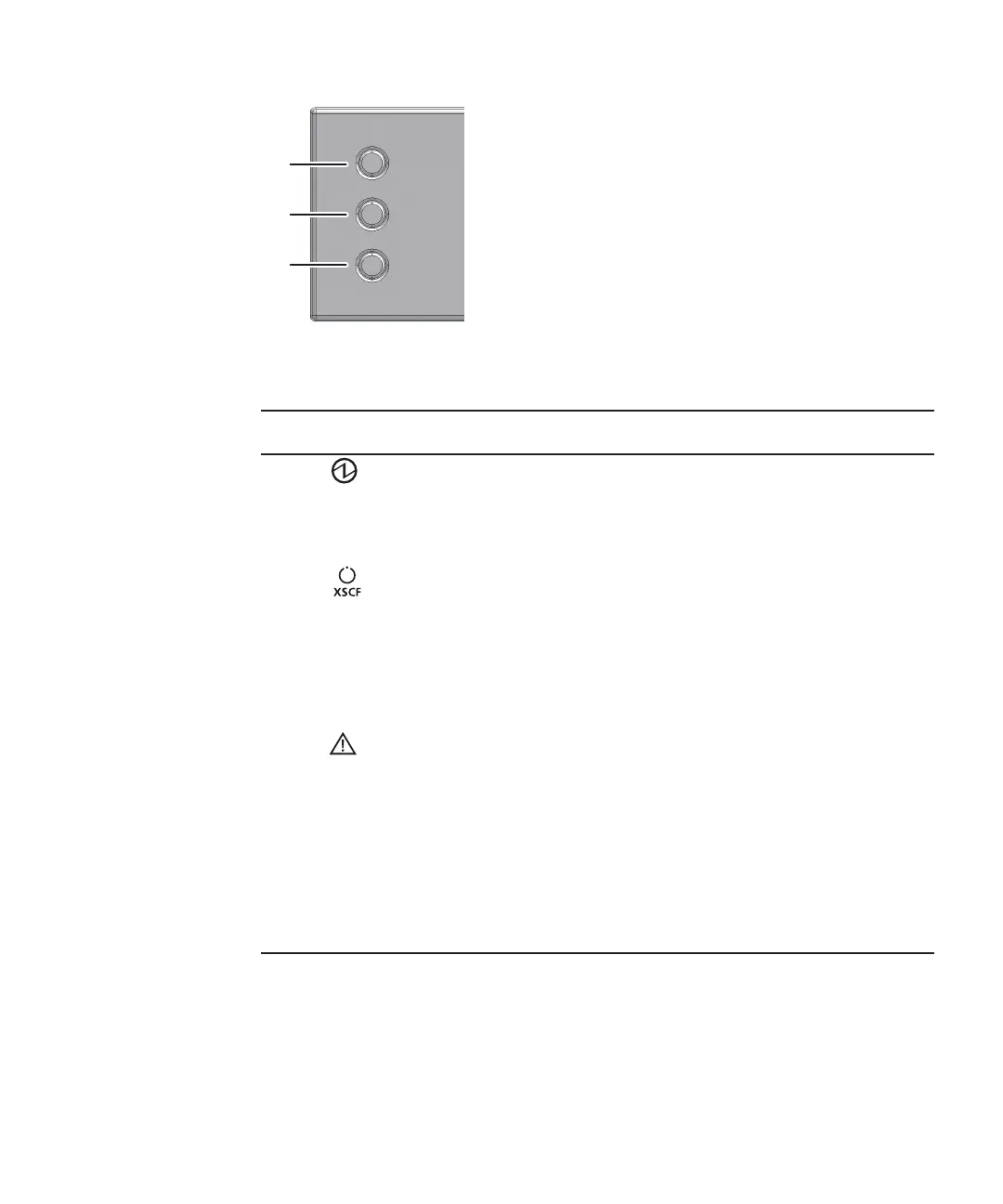

Figure 2-9
OPNL LEDs
Chapter 2 Understanding the System Units 27
