Table 2-16
XSCFU LEDs and Their States
Location
No.
Name Color State Description
1 READY Green On The XSCF is running.
Blinking The XSCF is being started.
-OffThe XSCF is stopped.
(This includes the state where it has been
disconnected from the building block
configuration and is stopped.)
2CHECK AmberOnA hardware error has occurred in the XSCFU.
(It is normal if the LED goes on for several
seconds and then goes off
immediately after
the power on.)
Blinking Component that requires maintenance
(This function is also called a locator.)
-OffThe XSCFU is in the normal state. Or no
power is being supplied.
3 MASTER
(SPARC
M12-2S only)
Green On The XSCF is operating as the master XSCF.
Blinking The standby XSCF is switching over to the
master XSCF.
-OffThe XSCF is being
started. Or the XSCF is
operating as the standby or slave XSCF.
XSCFU
Figure 2-11

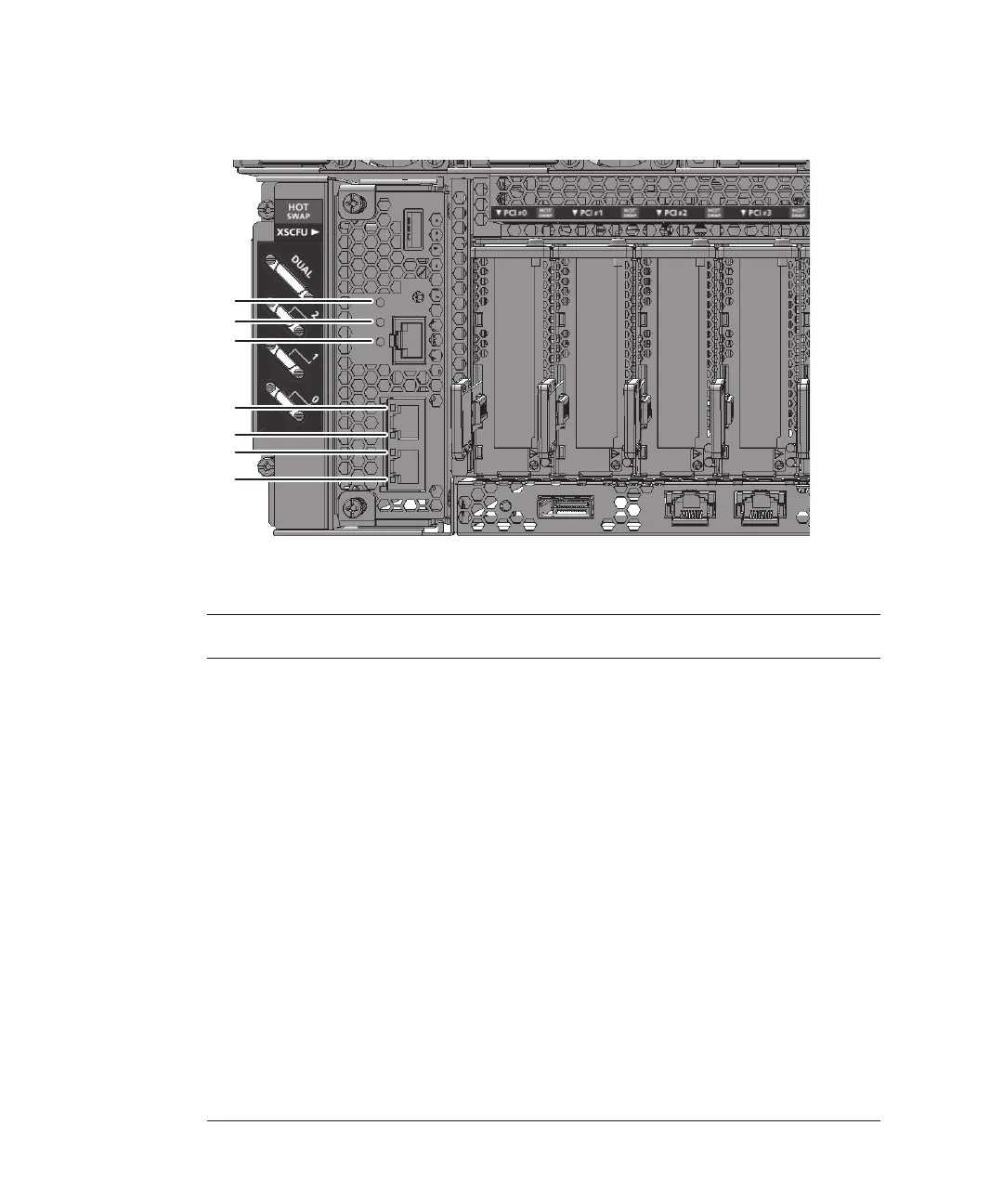

LED Locations on the XSCFU
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 202330
