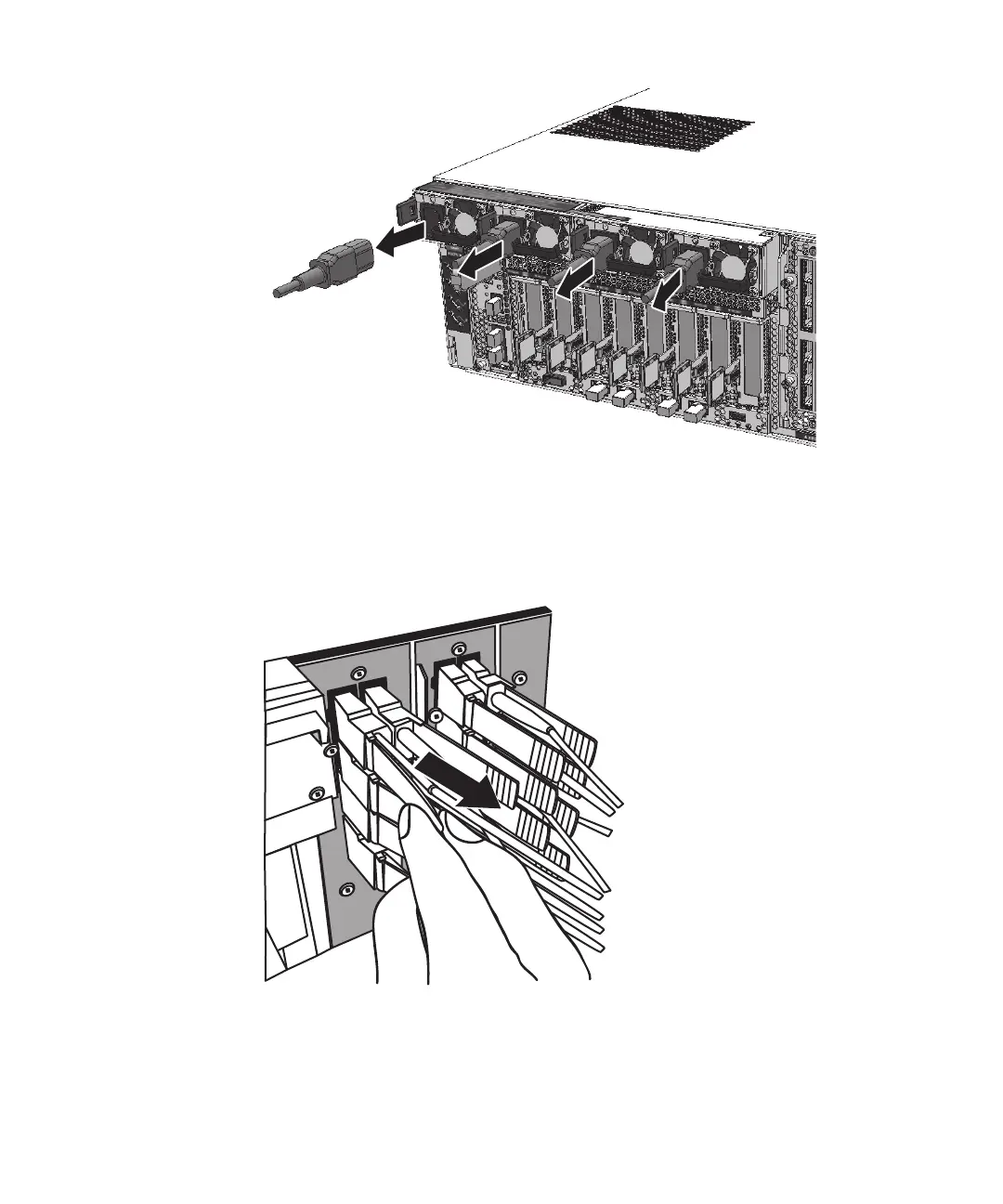

Figure
20-2
　　
Removing
a
Power
Cord
2.
Remove
the
crossbar
cables.
Remove
all
the
crossbar
cables
from
the
XBU
to
be
replaced.
For
the
procedure
for
removing
the
crossbar
cables,
see
"19.3
Removing
the
Crossbar
Cable."
Figure
20-3
　　
Removing
the
Crossbar
Cable
3.
Loosen
the
fixing
screws
of
the
XBU.
Loosen
the
two
fixing
screws
of
the
XBU
to
release
the
removal
levers.
Chapter
20
　
Maintaining
the
Crossbar
Unit 503
