Fujitsu Oracle SPARC M12-2

Examples of label indications
BB00-SCF0
BB01-SCF0
BB00-SCF0
BB01-SCF0
BB00-SCF0
BB01-SCF0
BB00-SCF0
BB01-SCF0

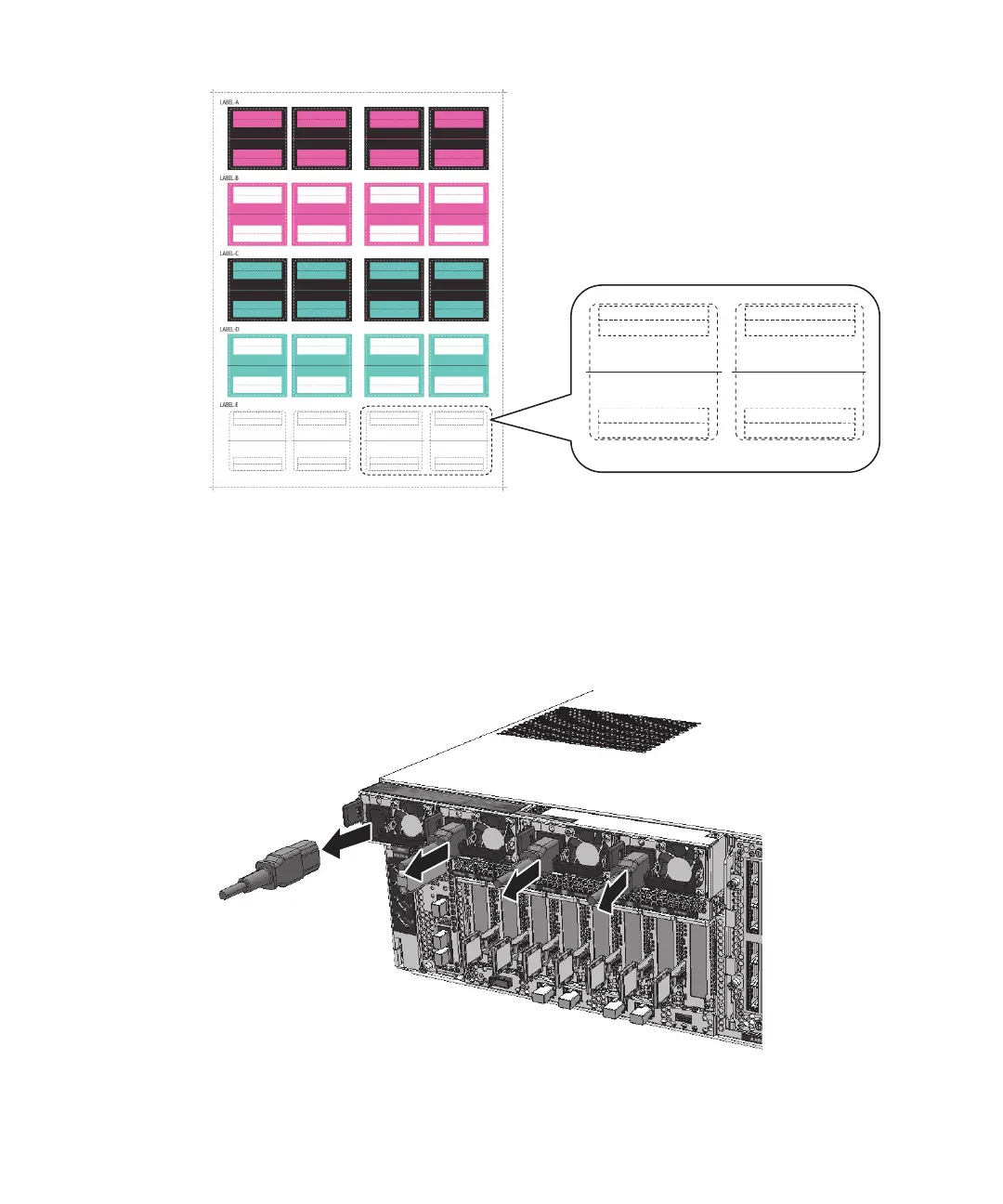

Figure 22-2
Accompanying Labels and Examples of Label Indications
3.
Place the server in the cold state.
To perform maintenance after every SPARC M12-2S was placed in the cold state
without using the maintenance menu, remove the power cords of every SPARC
M12-2S. For details on handling power cords, see "9.8.2 Removing
the Power
Cords."
Figure 22-3
Removing the Power Cord
4.
Remove the XSCF BB control cable.
Pull out the XSCF BB control cable (in the direction of arrow 2 in Figure 22-4 and
Fujitsu SPARC M12-2/M12-2S Service Manual
･
January 2023520
