XBU#0
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
XBU#1
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
BB#00
XBU#0
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
XBU#1
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
BB#01
XBU#0
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
XBU#1
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
BB#02
XBU#0
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
XBU#1
0L 0L
0R 0R
1L 1L
1R 1R
2L 2L
2R 2R
BB#03
(1)
(3)
(7) (8)
(9) (10)
(11) (12)
(4)
(2) (6)(5)

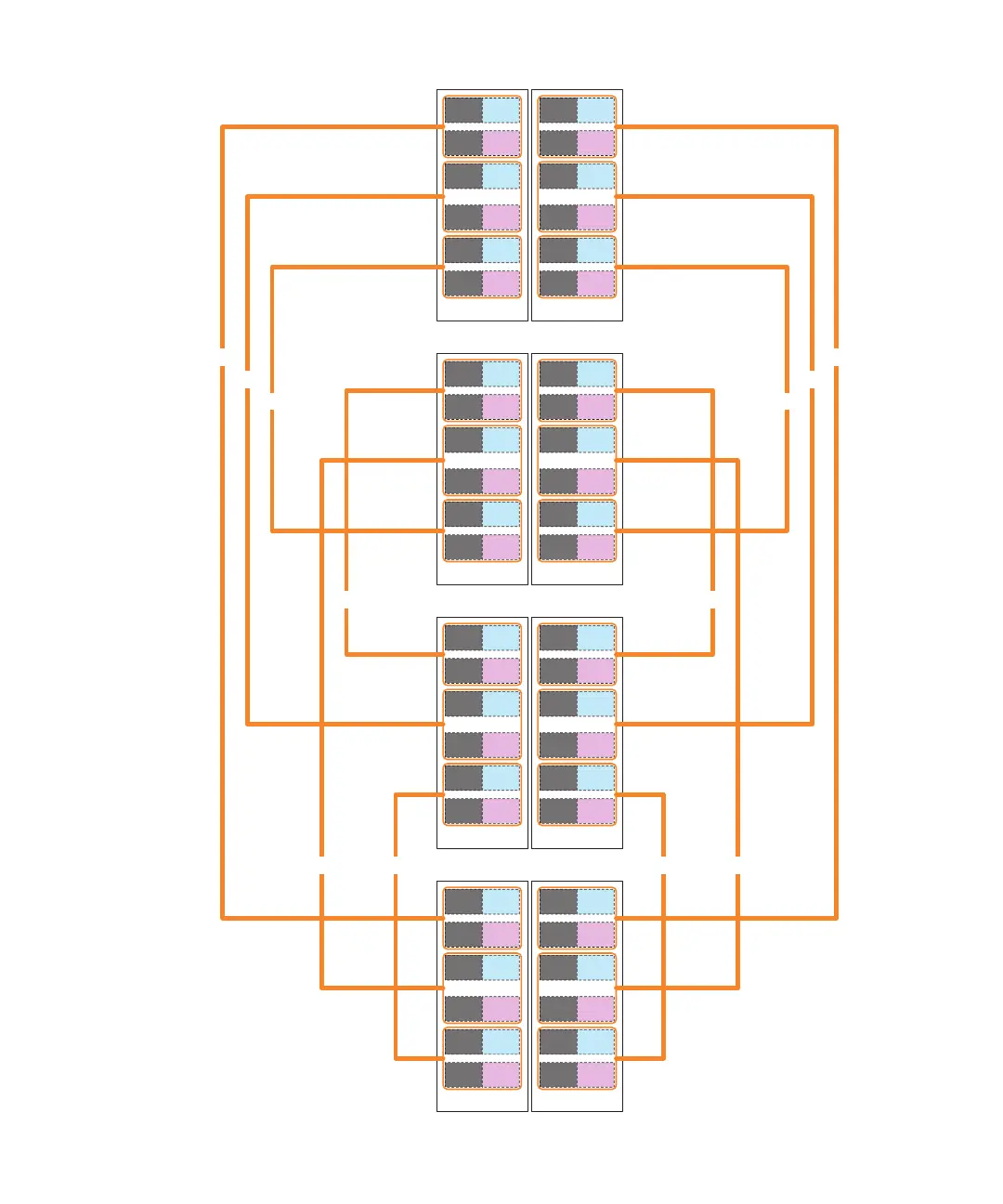

Figure
A-2
　　
Connection
Diagram
of
the
Crossbar
Cables
Fujitsu
SPARC
M12-2/M12-2S
Service
Manual
ï½¥
January
2023526
