P a g e | 110

UCM6200 Series User Manual

Version 1.0.20.38

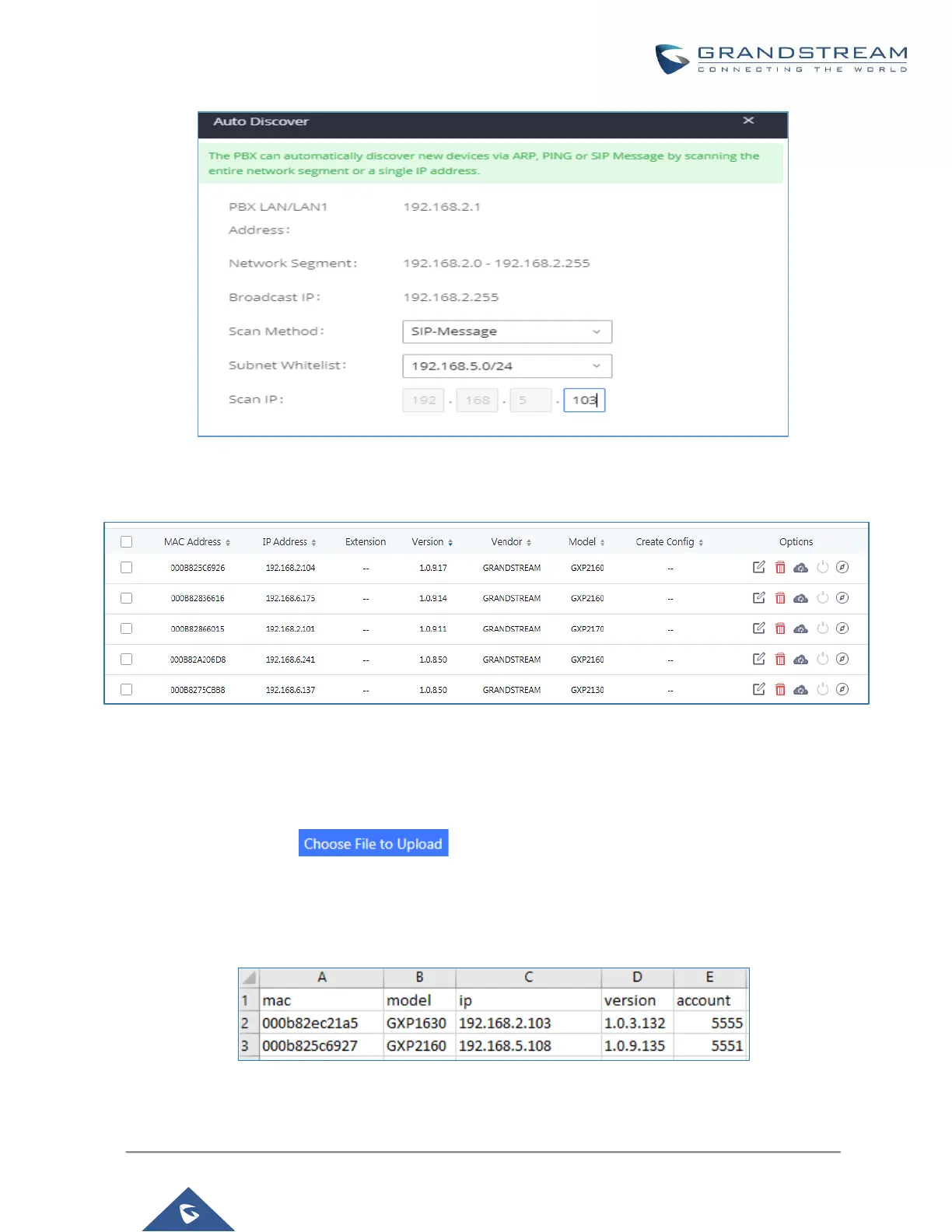

Figure 62: Auto Discover other subnets

Figure 63: Discovered Devices

Uploading Devices List

Besides the built-in discovery method on the UCM, users could prepare a list of devices on .CSV file and upload

it by clicking on the button , after which a success message prompt should be displayed.

Users need to make sure that the CSV file respects the format as shown on the following figure and that the

entered information is correct (valid IP address, valid MAC address, device model and an existing account),

otherwise the UCM will reject the file and the operation will fail:

Figure 64: Device list - CSV file sample
