P a g e | 397

UCM6200 Series User Manual

Version 1.0.20.38

• Daily: The call will be repeated every day at the specified time.

Once the call is made on the time specified, the following figure show the status of the wakeup call.

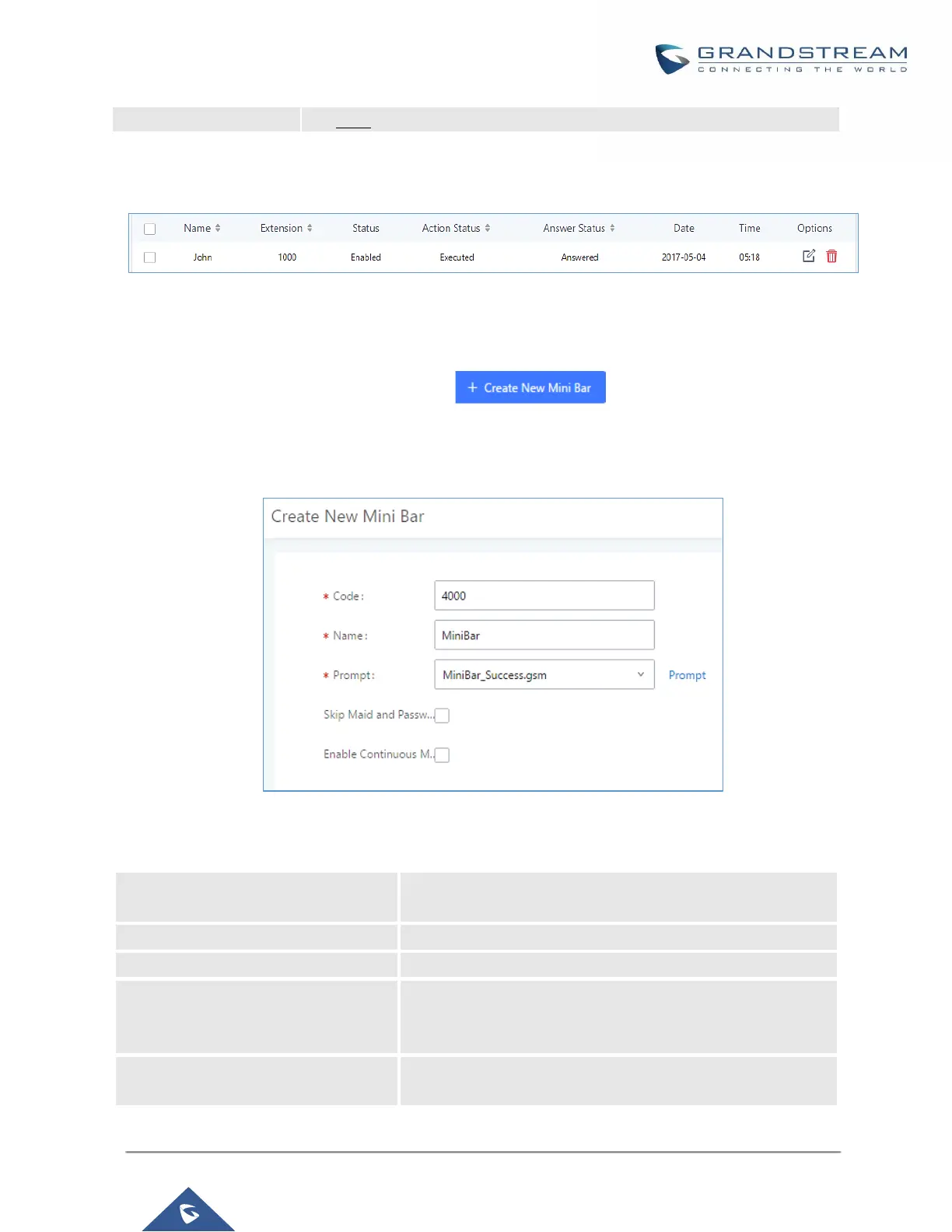

Figure 279: Wakeup Call executed

Mini Bar

In order to create a new mini bar, click on under UCM webGUI→Value-added

Features→PMS→Mini Bar.

The following windows will appear:

Figure 280: Create New Mini Bar

Table 125: Create New Mini Bar

Code

Enter a non-existing extension number to be dialed when

using the mini bar feature.

Name

Enter a name for the mini bar.

Prompt

Select the Prompt to play once connected to the mini bar.

Skip Maid and Password

Authentication

If enabled, the default maid code will be 0000, no

authentication is required. (Enter 0000 followed by # to access

the consumer goods)

Enable Continuous Multi Goods

Billing

If enabled, please separate the goods’ codes by*.
