Paging/Intercom Group Settings

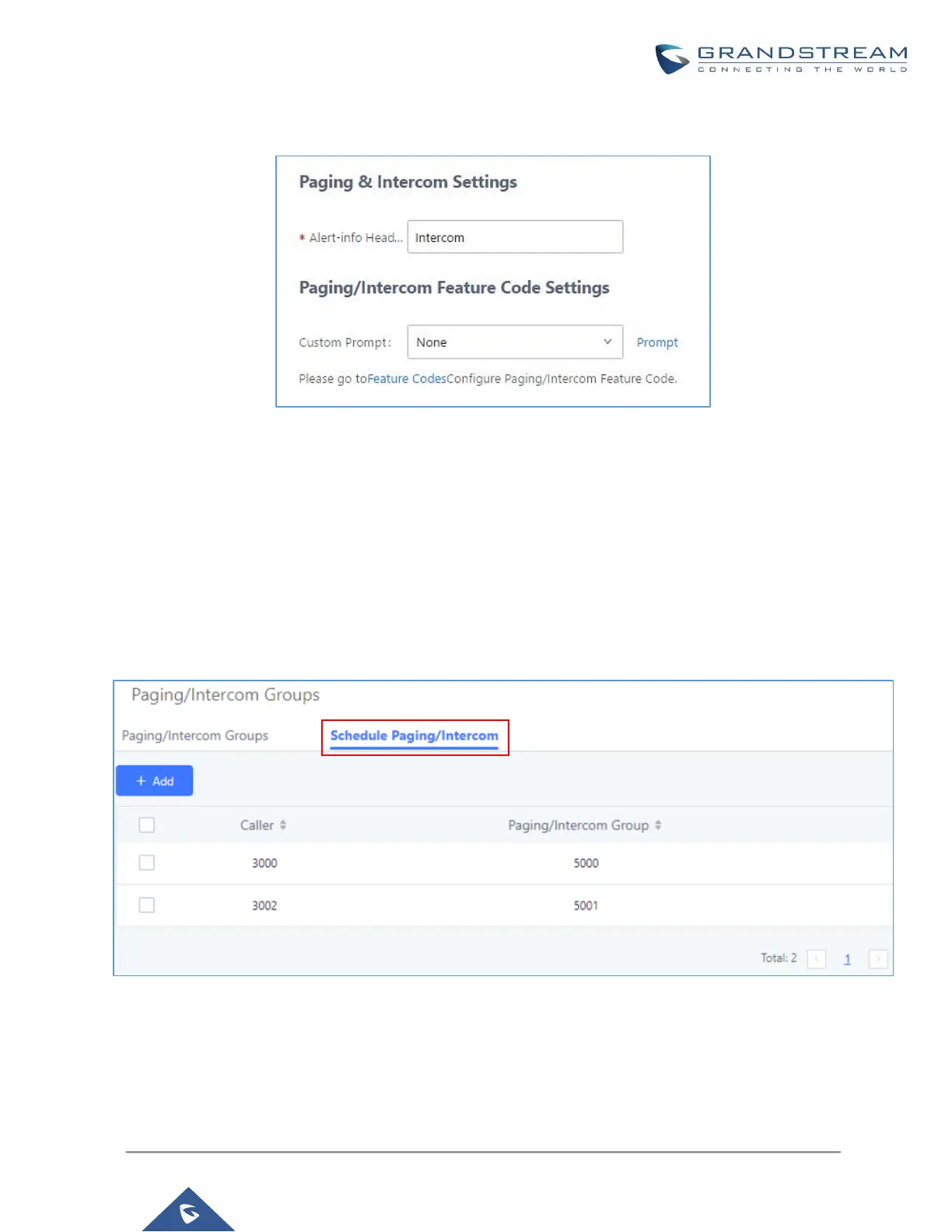

Figure 180: Page/Intercom Group Settings

The UCM6200 has pre-configured paging/intercom feature code. By default, the Paging Prefix is *81 and the

Intercom Prefix is *80. To edit page/intercom feature code, click on "Feature Codes" in the "Paging/Intercom

Group Settings" dialog. Or users could go to Web GUI→Call Features→Feature Codes directly.

Configure a Scheduled Paging/Intercom

Users can schedule paging/intercom calls by using the Schedule Paging/Intercom page. To schedule, click the

Add button on the new page and configure the caller, the group to use, and the time to call out.

Figure 181: Schedule Paging/Intercom page
