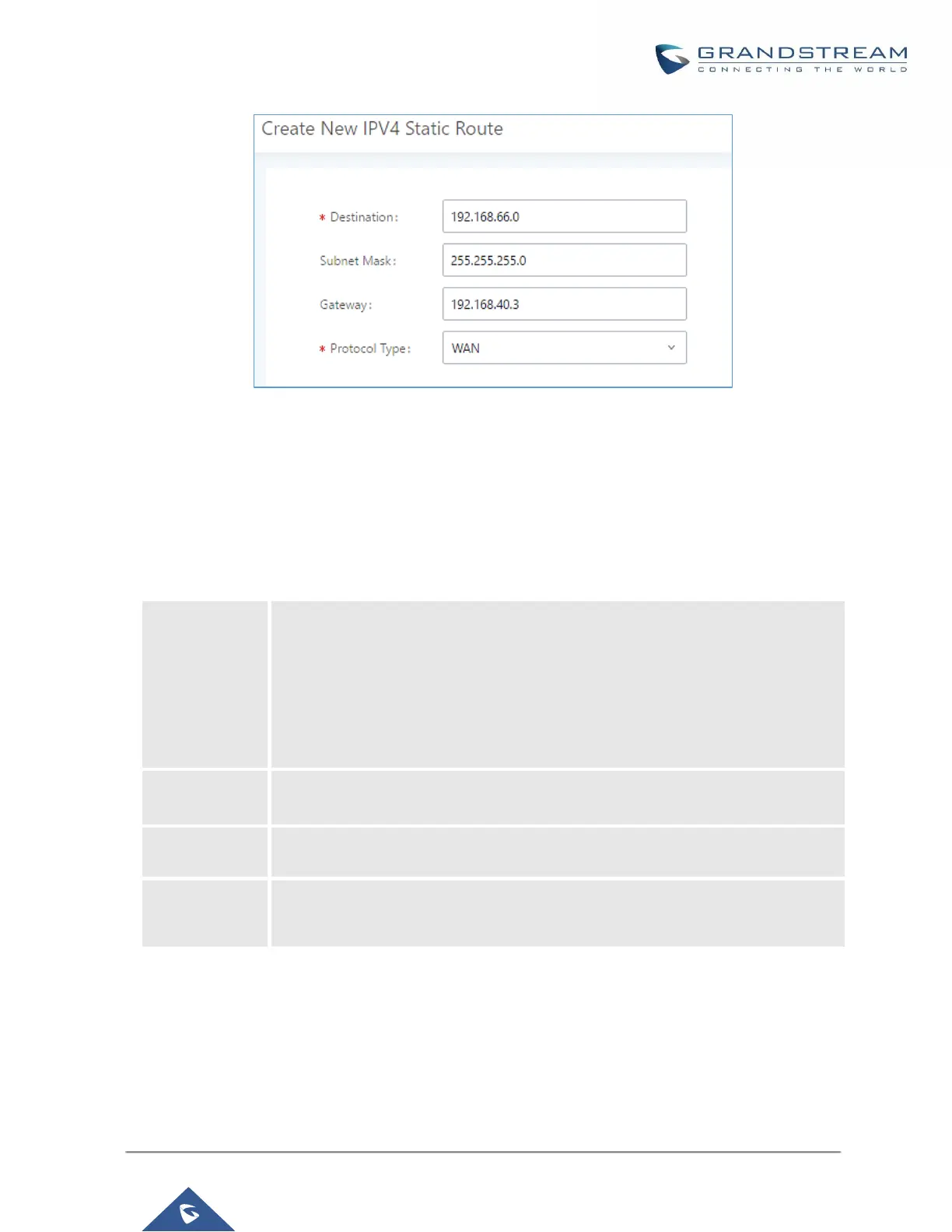

Figure 20: UCM6204 Static Route Configuration
Port Forwarding
The UCM network interface supports router functionality that allows users to configure port forwarding. If the
UCM is set to "Route" in System Settings->Network Settings->Basic Settings->Method, the Port Forwarding
tab will be available.
Table 10: UCM6200 Network Settings→Port Forwarding
WAN Port
Specify the WAN port number or a range of WAN ports. Unlimited number of ports
can be configured.
Note:
When set to a range, both the WAN port and LAN port must be configured with the
same range (e.g., WAN port: 1000-1005, LAN port: 1000-1005). Access from the
WAN port will be forwarded to the LAN port with the same port number.
LAN IP
Specify the LAN IP address.
LAN Port
Specify the LAN port number or a range of LAN ports.
Please see the note for WAN Port.
Protocol Type
Select protocol type "UDP Only", "TCP Only" or "TCP/UDP" for the forwarding in
the selected port. The default setting is "UDP Only".
Here is an example of an environment and how to configure port forwarding to an endpoint's web portal.
• Configure the UCM as a router by selecting "Route" in System Settings->Network Settings->Basic
Settings->Method.
➢ WAN port is connected to an uplink switch with a public IP address configured (e.g., 1.1.1.1).
