P a g e | 208

UCM6200 Series User Manual

Version 1.0.20.38

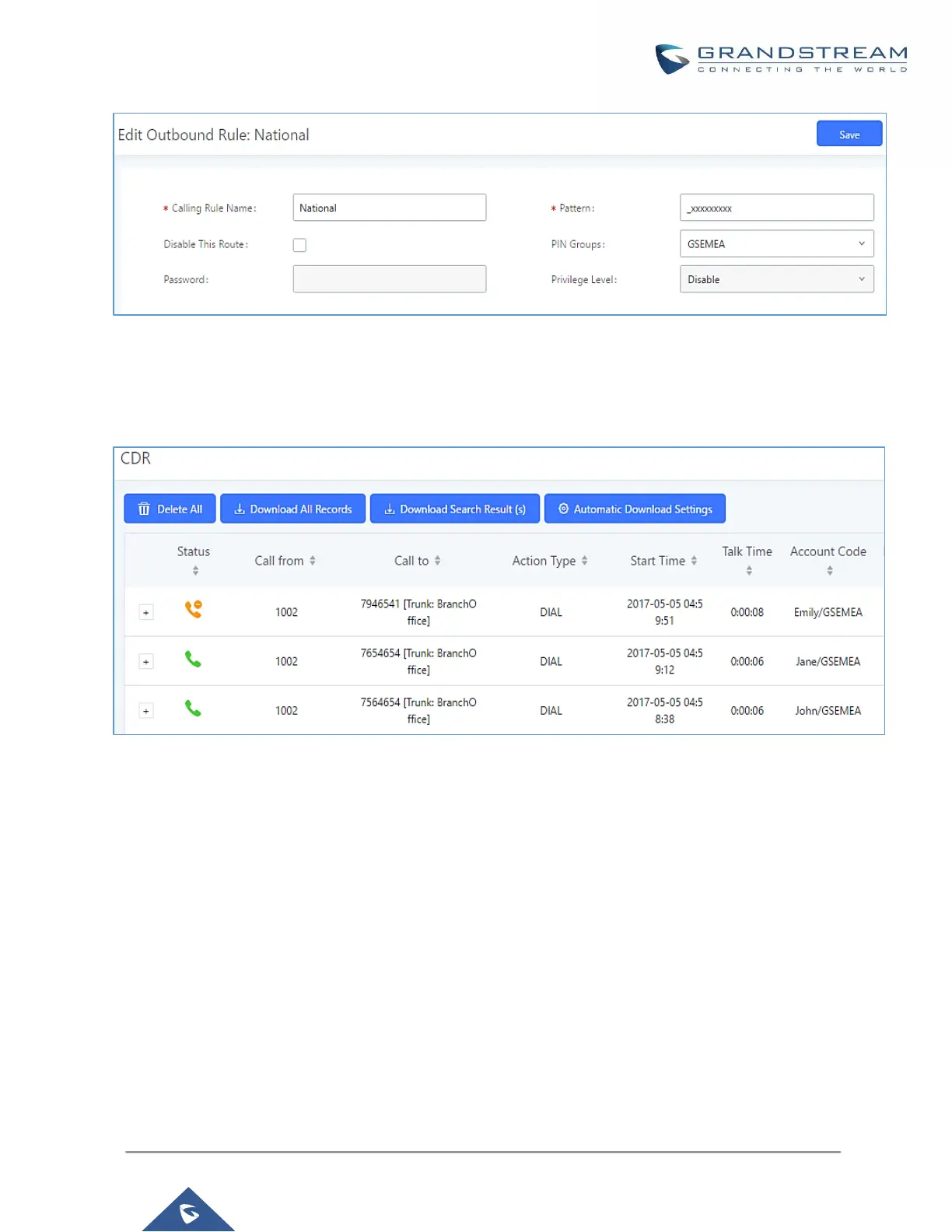

Figure 117: Outbound PIN

If PIN group CDR is enabled, the call with PIN group information will be displayed as part of CDR under Account

Code field.

Figure 118: CDR Record

- Importing PIN Groups from CSV files:

User can also import PIN Groups by uploading CSV files for each group. To do this:

1. Navigate to Extension/Trunk→Outbound Routes→PIN Groups and click on the “Choose file to

upload” button.
