P a g e | 93

UCM6200 Series User Manual

Version 1.0.20.38

NTP Server

The UCM can act as an NTP server for clients to sync their system times with. To configure this, navigate to

System Settings->Time Settings->NTP Server and set Enable NTP Server to "Yes". On the client side, use

the UCM's IP address or hostname as the NTP server address.

Office Time

The system administrator can define office hours which can be used as conditions for call forwarding and

inbound routing. To configure this, navigate to System Settings->Time Settings->Office Time and click on

the Add button to create office hours.

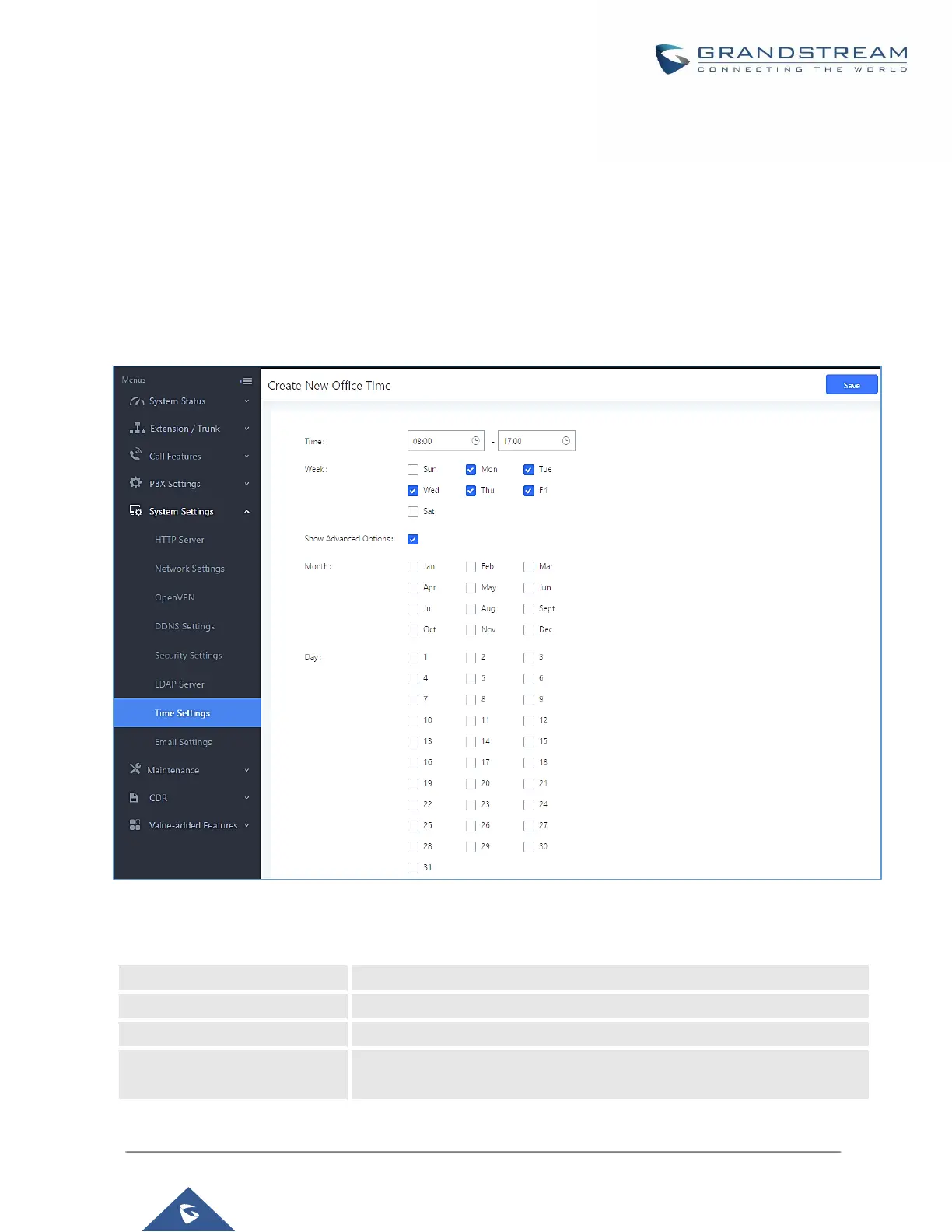

Figure 46: Create New Office Time

Table 18: Create New Office Time

Start Time

Configure the start time for office hour.

End Time

Configure the end time for office hour

Week

Select the workdays in one week.

Show Advanced Options

Check this option to show advanced options. Once selected, please

specify "Month" and "Day" below.
