P a g e | 246

UCM6200 Series User Manual

Version 1.0.20.38

Next, edit the newly created trunk and click on the Advanced Settings tab. Make sure the IPVT Mode option is

checked. Otherwise, you may experience audio issues when dialing into IPVT.

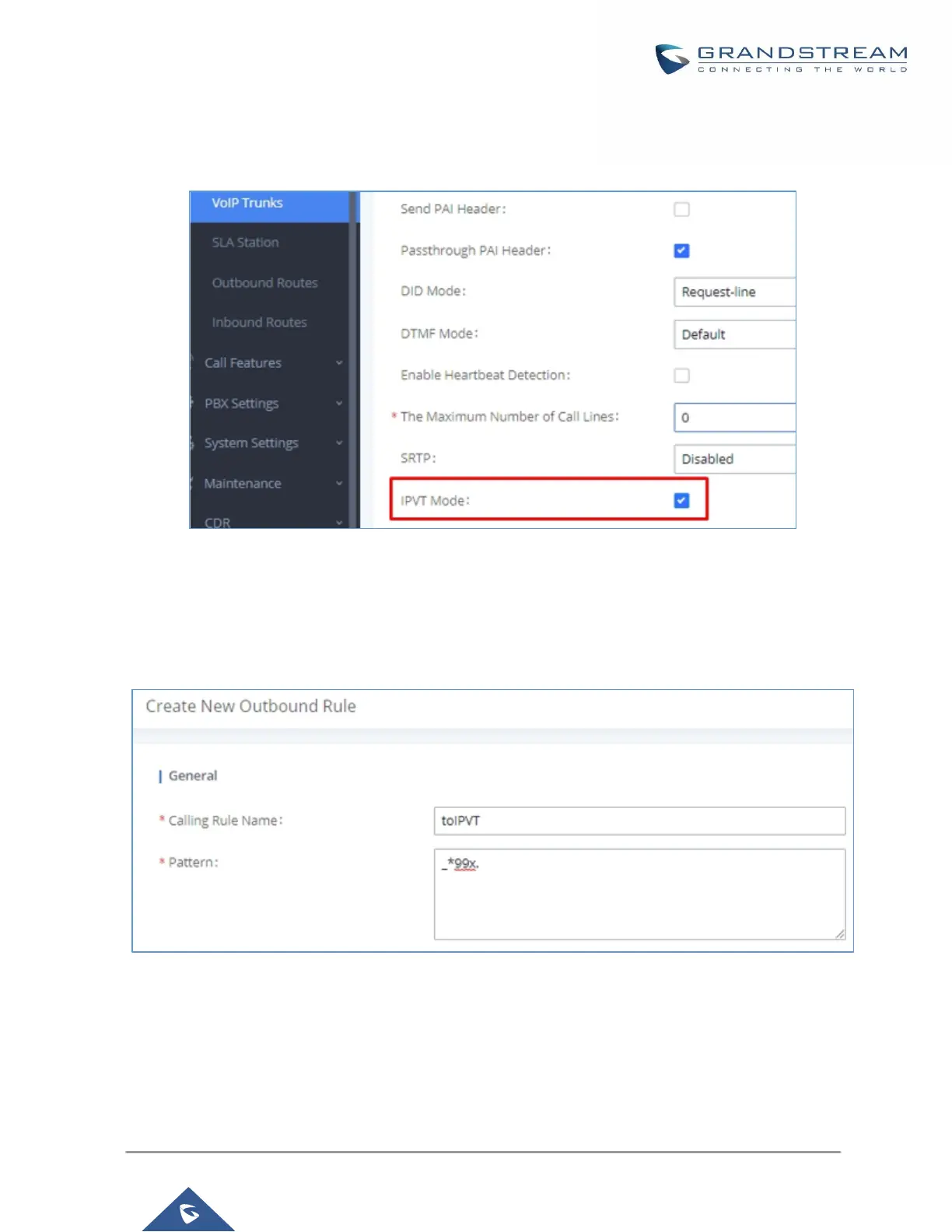

Figure 152 - IPVT Mode

Finally, create an outbound route for this trunk. This route will be used to dial IPVT meeting IDs. Due to IPVT

meeting IDs having a random assortment of numbers, it is recommended to use a unique code to precede the

meeting ID so that UCM can direct calls to the IPVT trunk without fail (e.g., *99). In the below image, “x.” would

be the meeting ID.

Figure 153 - IPVT Outbound Pattern

However, if a unique code is used, users must also configure the Strip field to remove the unique code from the

meeting ID before the call is sent to IPVT.
