P a g e | 410

UCM6200 Series User Manual

Version 1.0.20.38

Extensions

Extensions Status can be seen from the same configuration page, users can go under Web

GUI→Extension/Trunk→Extensions and following page will be displayed listing the extensions and their status

information.

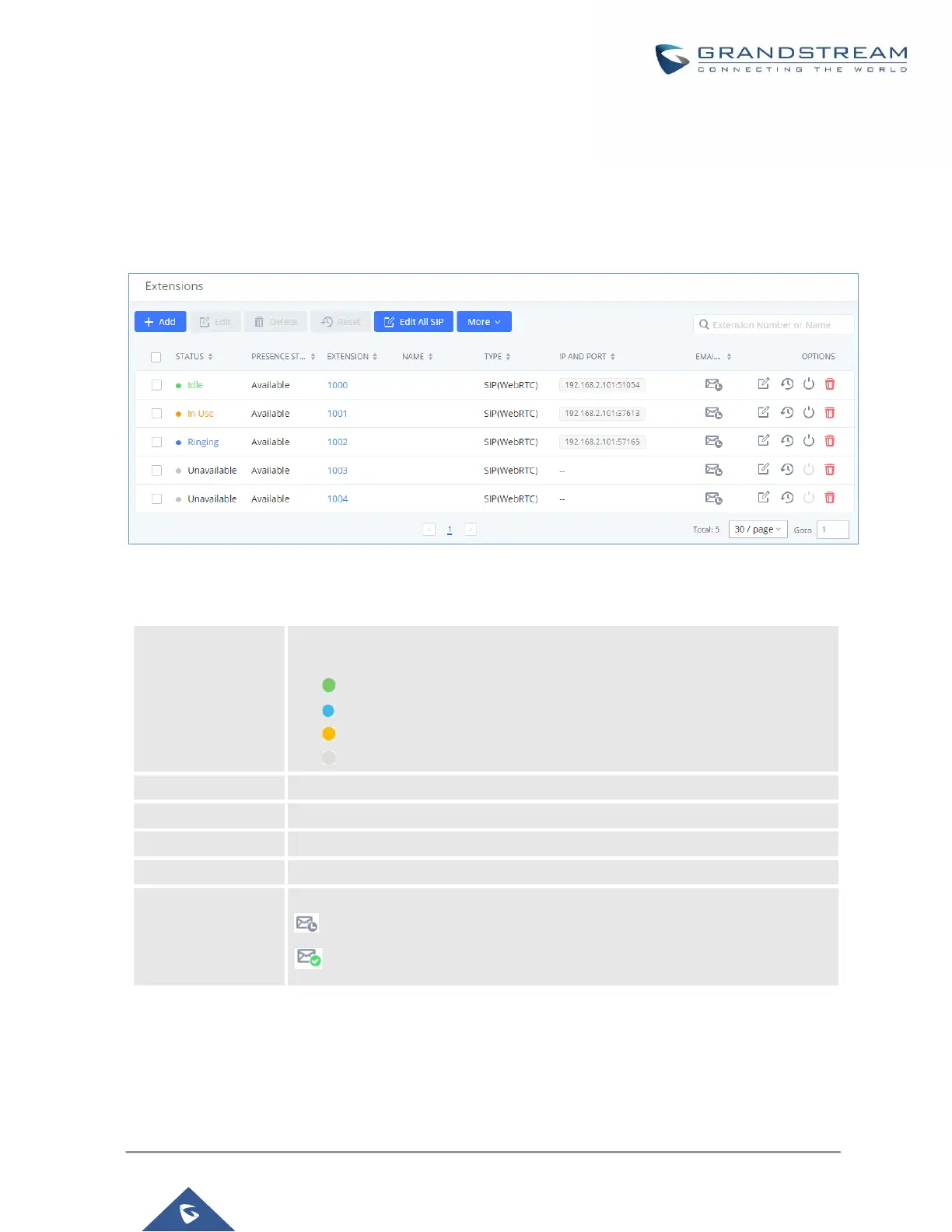

Figure 293: Extension Status

Table 133: Extension Status

Status

Display extension number (including feature code). The color indicator has the

following definitions.

• Green: Free

• Blue: Ringing

• Yellow: In Use

• Grey: Unavailable

Presence Status

Display the presence status of the extension.

Extension

Display the extension number.

Name

First name and last name of the extension.

IP and Port

Display the IP and port number of the registered device.

Display Email Notification status for the extension.

SIP Account email notification has not been sent.

SIP Account email notification has been sent.
