P a g e | 292

UCM6200 Series User Manual

Version 1.0.20.38

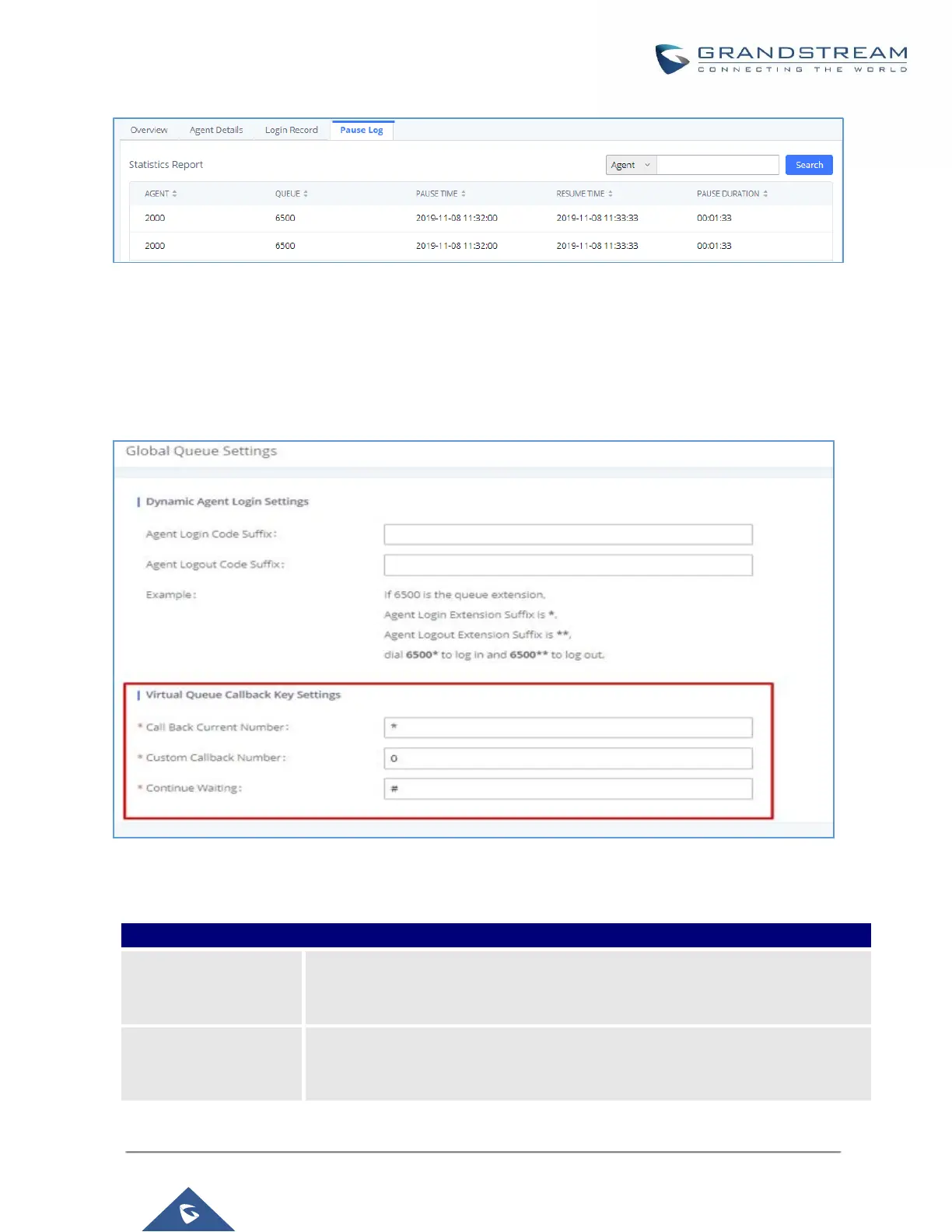

Figure 190: Pause Log

Global Queue Settings

As explained before, under this section users can configure the feature codes for Dynamic agent login and

logout, and also can now customize the keys for virtual queue options like shown below.

Figure 191: Global Queue Settings

Table 84: Global Queue Settings

Dynamic Agent Login Settings

Agent Login Code

Suffix

Configure the code to dial after the queue extension to log into the queue (i.e.

queue extension + suffix).

If no suffix is configured, dynamic agents will not be able to log in

Agent Logout Code

Suffix

Configure the code to dial after the queue extension to log out of the queue (i.e.

queue extension + suffix).

If no suffix is configured, dynamic agents will not be able to log out.
