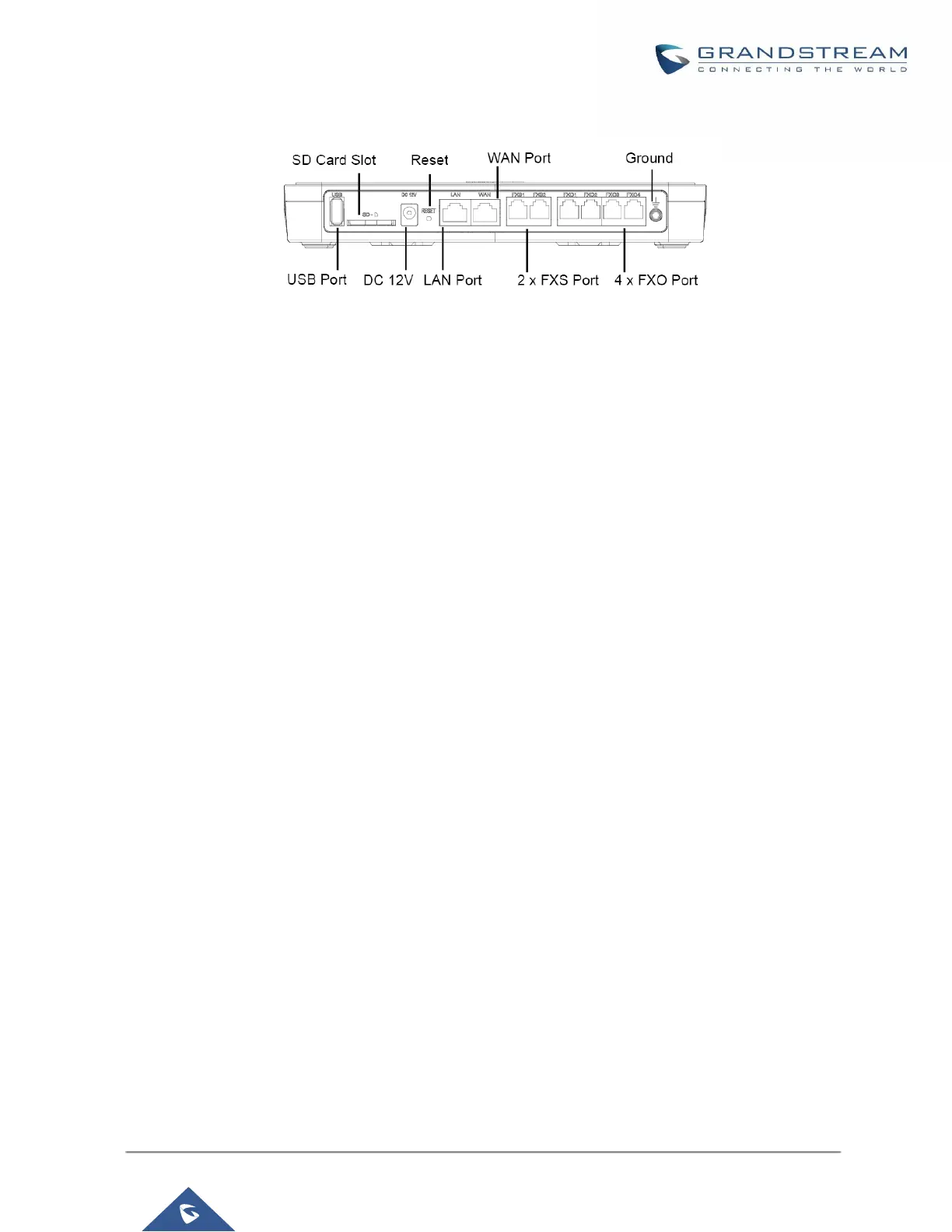

Figure 4: UCM6204 Back View
To set up the UCM6204, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6204.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the power jacks located on the back of the UCM6204. It is
highly recommended to connect the other end of the plug to a surge protected power outlet.
4. Wait for the UCM6204 to boot up. The LCD in the front will show the device hardware information when
the boot process is done.
5. Once the UCM6204 is successfully connected to network, the LED indicator for WAN in the front will be
solid green and the LCD will display the IP address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and
Fax) to the FXS ports.
7. Note: The ground screw needs to be connected.
Connect the UCM6208
To set up the UCM6208, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6208.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the power jacks located on the back of the UCM6208. It is highly
recommended to connect the other end of the plug to a surge protected power outlet.
4. Wait for the UCM6208 to boot up. The LCD in the front will show the device hardware information when the
boot process is done.
5. Once the UCM6208 is successfully connected to network, the LED indicator for NETWORK in the front will
be solid green and the LCD will display the IP address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and Fax)
to the FXS ports.
Note: The ground screw needs to be connected.
