P a g e | 332

UCM6200 Series User Manual

Version 1.0.20.38

The black color of the active call means the connection of call time is less than half an hour. It means this call is

normal.

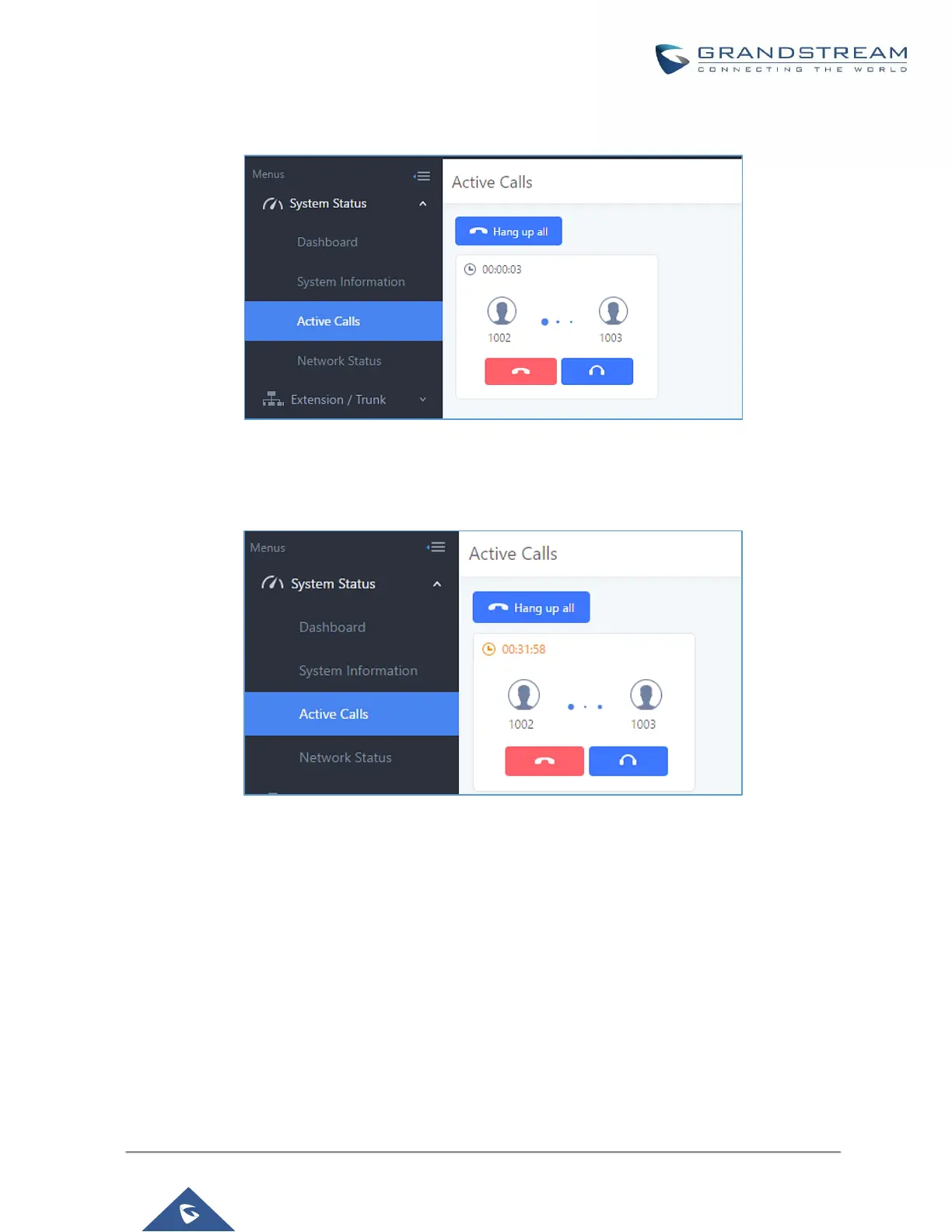

Figure 227: Call Connection less than half hour

The yellow color of the active call means the connection of call time is greater than half an hour but less than

one hour. It means this call is a bit long.

Figure 228: Call Connection between half an hour and one hour

The red color of the active call means the connection of call time is more than one hour. It means this call could

be abnormal.
