Network Troubleshooting

The Network Troubleshooting page under Maintenance allows users to start network captures and

ping/traceroute remote hosts.

Ethernet Capture

Captured traces can be downloaded for analysis.

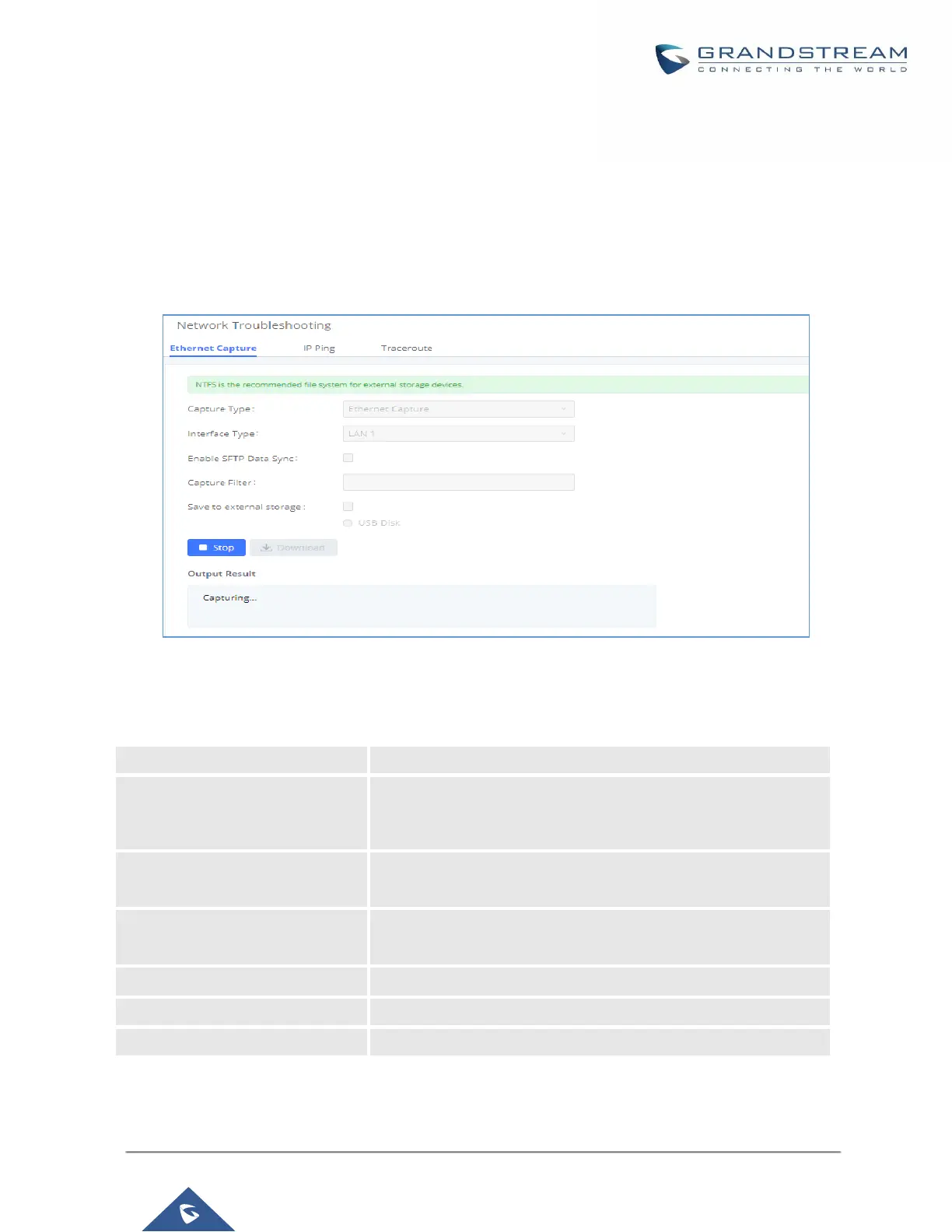

Figure 344: Ethernet Capture

Table 149: Ethernet Capture

Interface Type

Select the network interface to monitor.

Enable SFTP Data Sync

Check this box to save the capture files in the SFTP server.

Please make sure the configuration of data synchronization works

before.

Capture Filter

Enter the filter to obtain the specific types of traffic, such as (host,

src, dst, net, proto…).

Save to External Storage

Check this box to activate storage of the capture either on the

USB or SD Card.

Start

Click to start the trace.

Stop

Click to stop the trace.

Download

Click to download the trace if trace is stored locally.

The output result is in .tgz format, and users will need to use a compression tool such as WinRAR or 7-zip to
