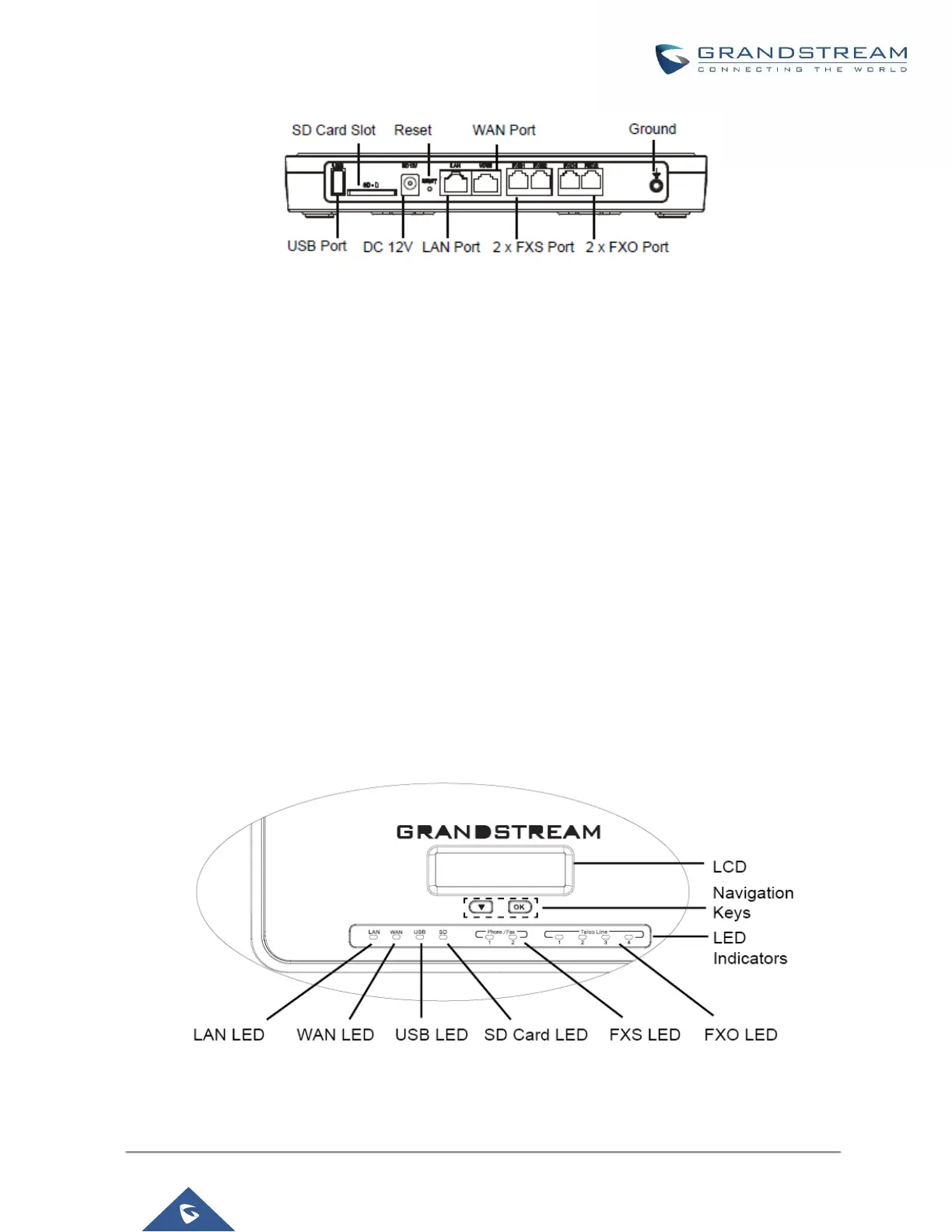

Figure 2: UCM6202 Back View
To set up the UCM6202, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the UCM6202.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the power jacks located on the back of the UCM6202. It is highly
recommended to connect the other end of the plug to a surge protected power outlet.
4. Wait for the UCM6202 to boot up. The LCD in the front will show the device hardware information when the
boot process is done.
5. Once the UCM6202 is successfully connected to network, the LED indicator for WAN in the front will be solid
green and the LCD will display the IP address.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports; connect analog lines (phone and Fax)
to the FXS ports.
Note: The ground screw needs to be connected.
Connect the UCM6204
Figure 3: UCM6204 Front View
