Export Extensions
UCM extensions can be exported to a CSV file. Different extension types (SIP, IAX, FXS) cannot be exported to
the same CSV file. To export extensions, click on the Export button and select the extension type to export.

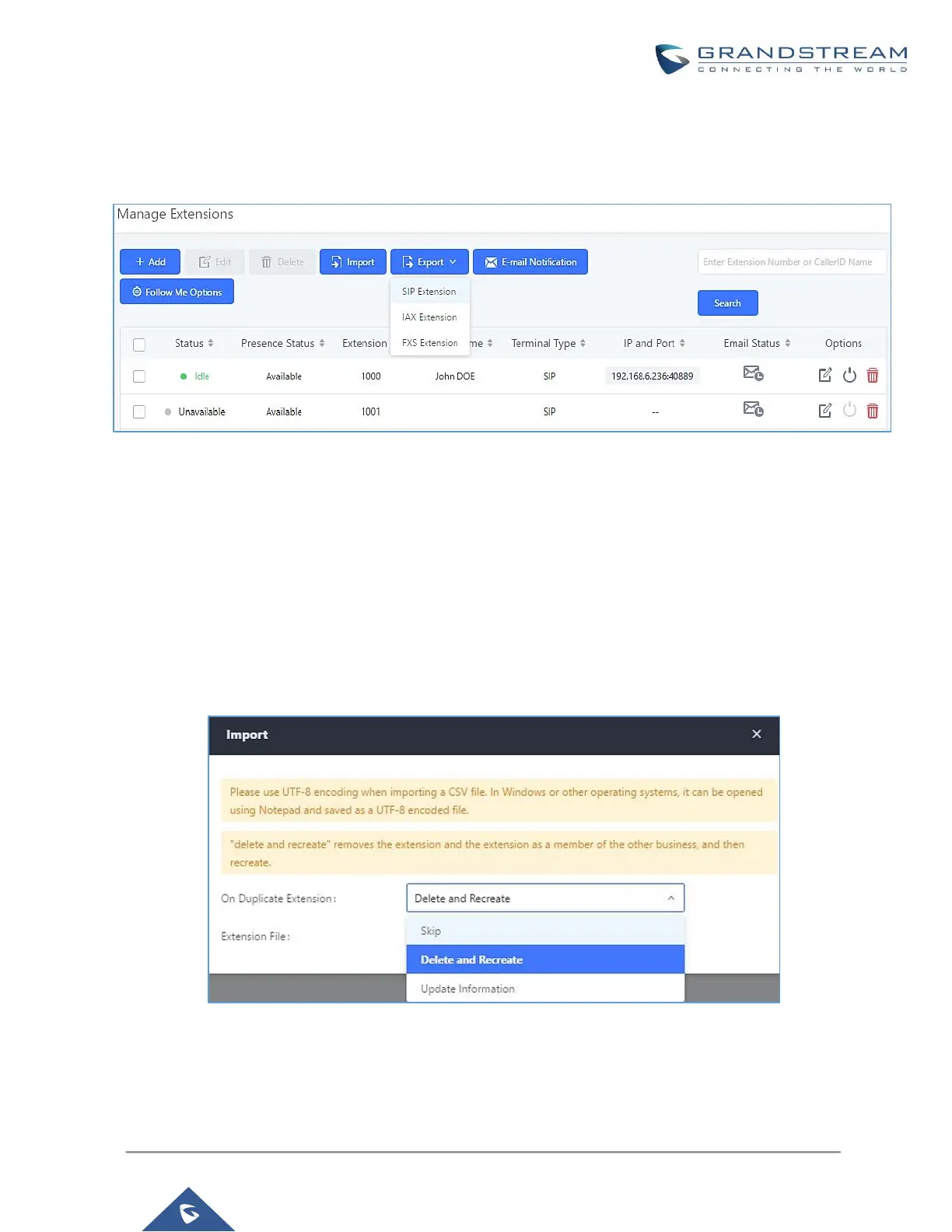

Figure 85: Export Extensions
Users can also use the exported CSV file to use as a template to manually edit extension information.
Import Extensions
The capability to import extensions to the UCM6200 provides users flexibility to batch add extensions with similar
or different configuration quickly into the PBX system.
• Export extension csv file from the UCM6200 by clicking on "Export Extensions" button.
• Fill up the extension information you would like in the exported csv template.
• Click on "Import Extensions" button. The following dialog will be prompted.
Figure 86: Import Extensions
• Select the option in "On Duplicate Extension" to define how the duplicate extension(s) in the imported csv
file should be treated by the PBX.
