PMS Features

Room Status

User can create Rooms by clicking on , the following Figure will be displayed then.

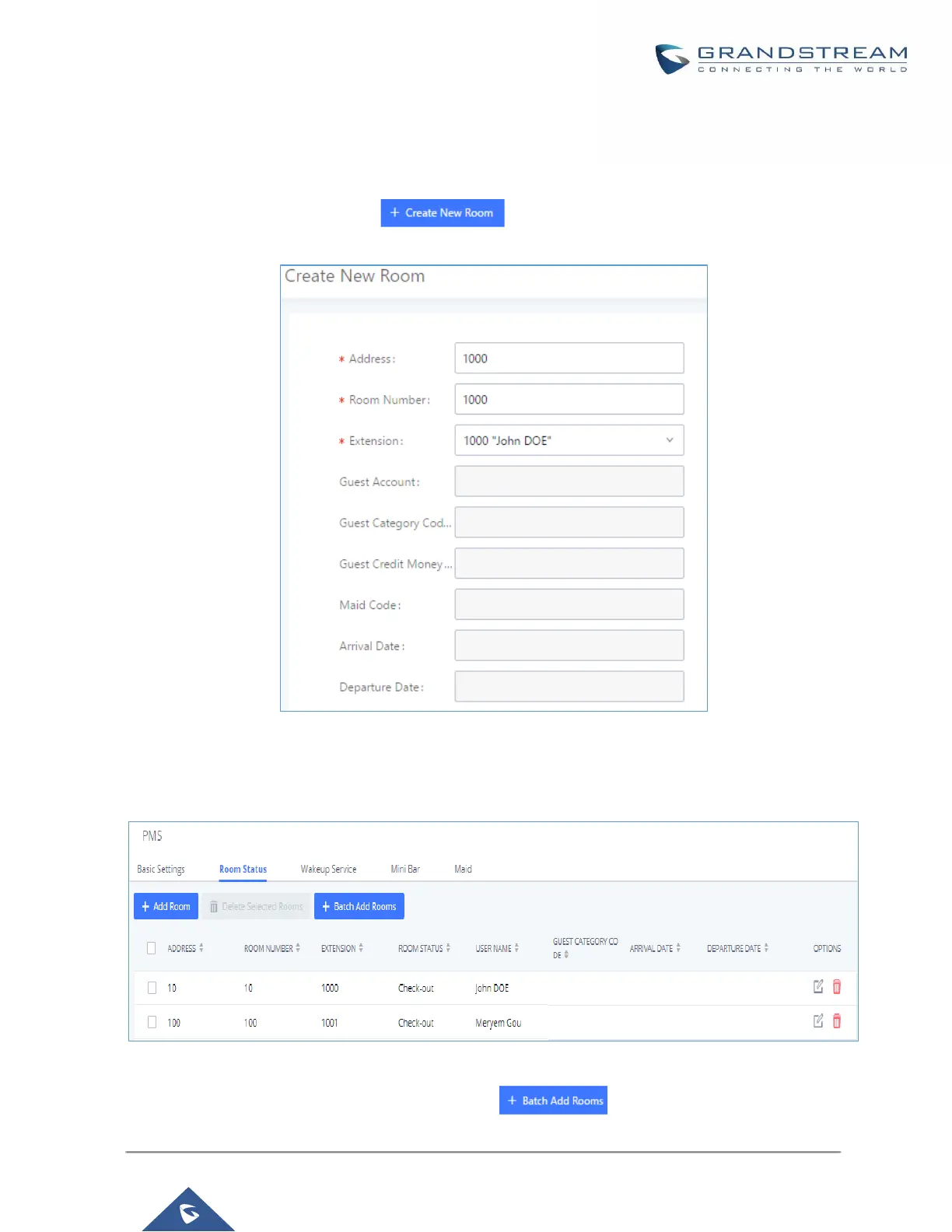

Figure 275: Create New Room

Click “Save” to create the new room, the fields above can be configured from the PMS platform, once set the

following screen will be shown:

Figure 276: Room Status

User can create a batch of rooms as well by clicking on .
