P a g e | 64

UCM6200 Series User Manual

Version 1.0.20.38

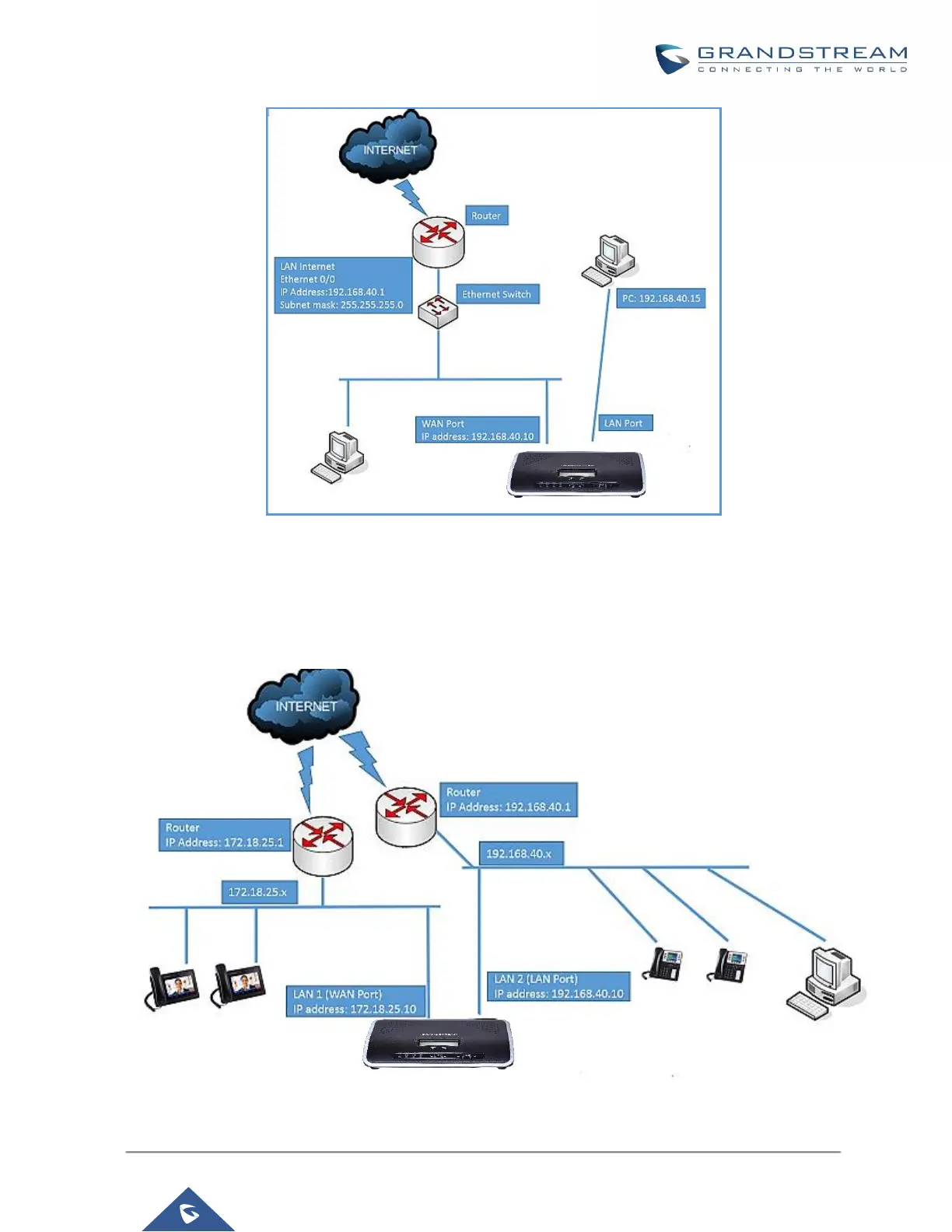

Figure 12: UCM6202 Network Interface Method: Switch

• Method: Dual

Both WAN port and LAN port are used for uplink connection. Users will need assign LAN 1 or LAN 2 as the

default interface in option "Default Interface" and configure "Gateway IP" if static IP is used for this interface.

Figure 13: UCM6202 Network Interface Method: Dual
