P a g e | 197

UCM6200 Series User Manual

Version 1.0.20.38

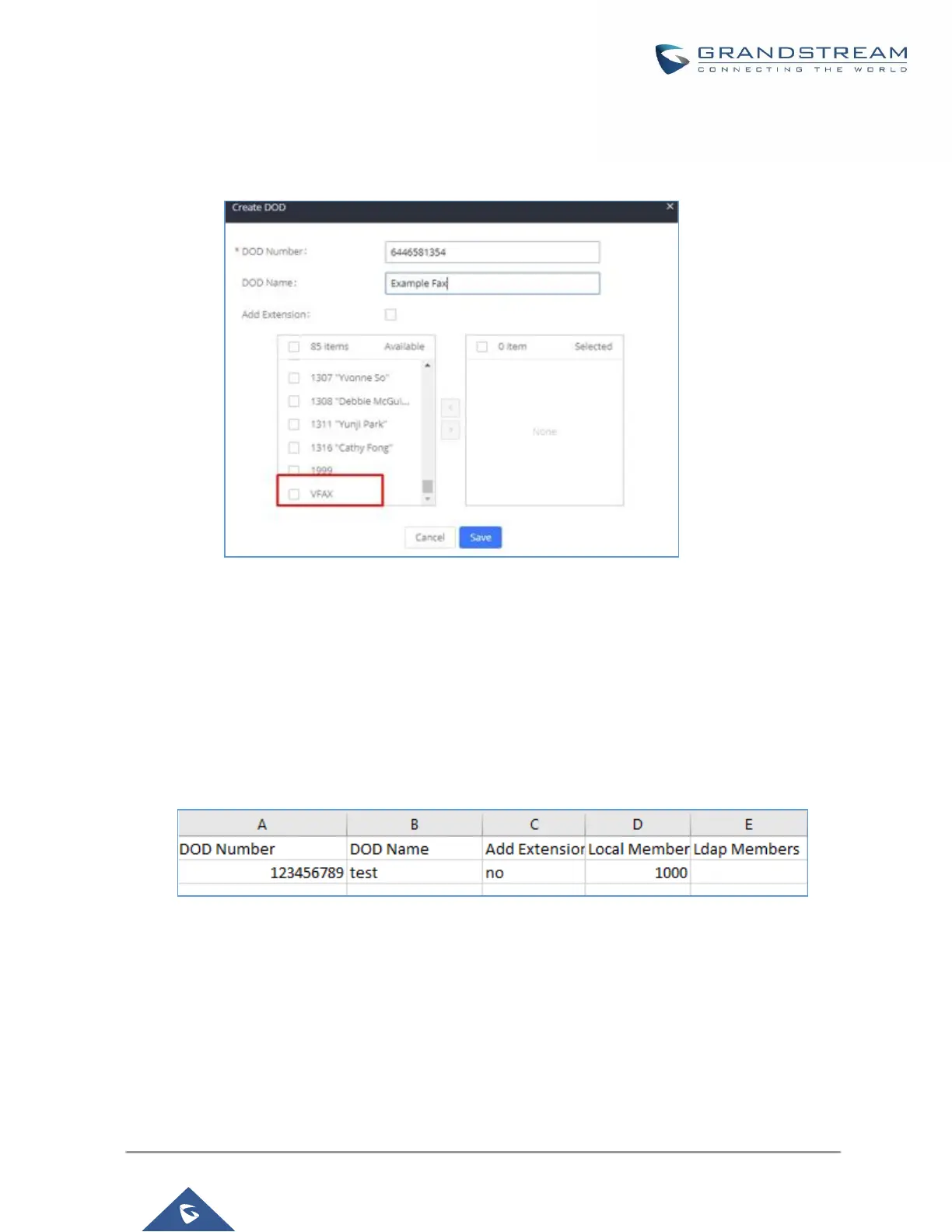

DOD can also be assigned to the UCM’s Fax Sending feature. To do this, select “VFAX” from the extension list

when creating or editing a DOD number like shown below.

Figure 106: Fax Sending DOD

DOD Import/Export

UCM62xx now supports to import/export DOD CSV file for an easy configuration.

• To Import DOD CSV file, click on “Import”.

Note: the file must contain and respect the following columns: DOD Number, DOD Name, Add extension, Local

Member, LDAP Members.

Figure 107: DOD Import

• To export the DOD file, users can click on “Export”.
