UCM6200 Series User Manual

Version 1.0.20.38

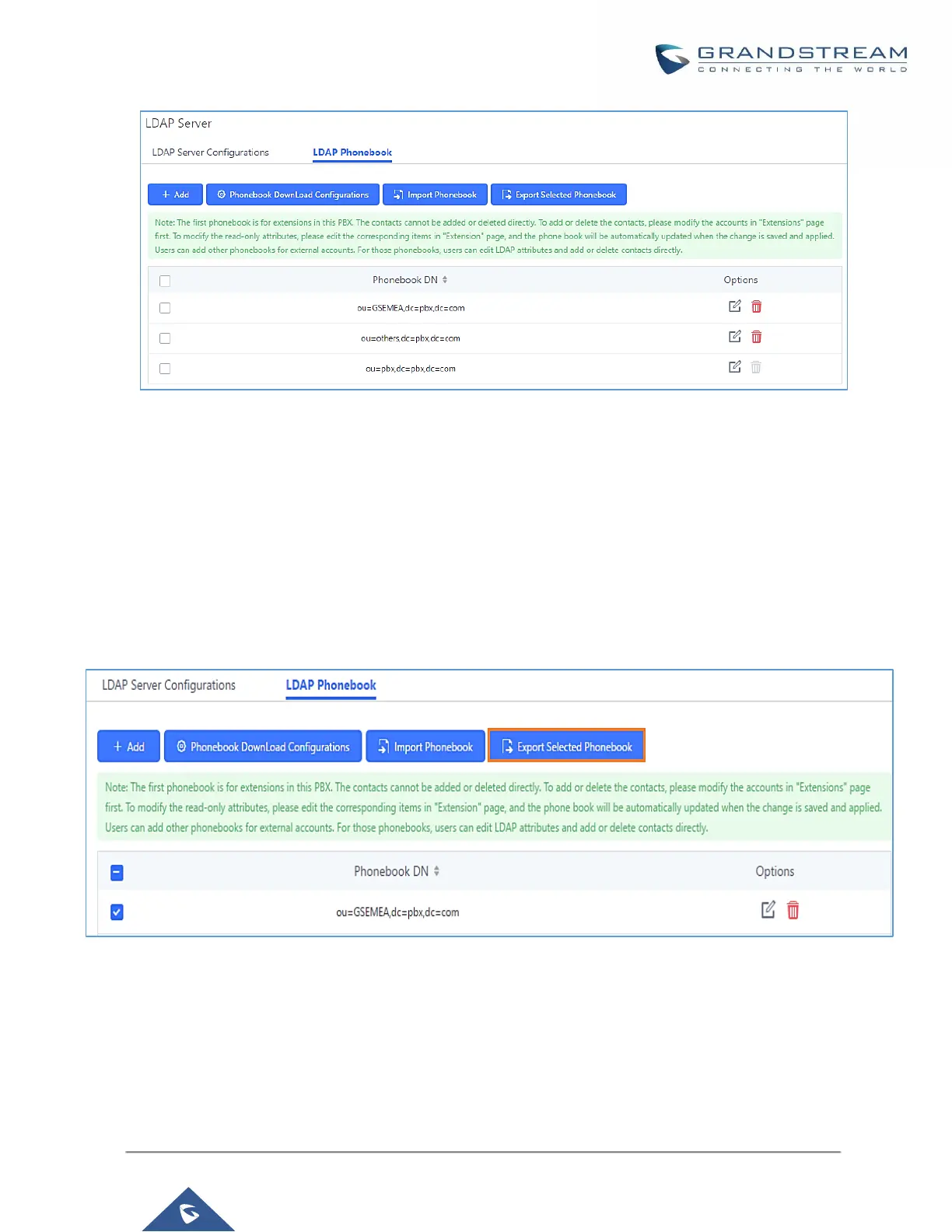

Figure 41: LDAP Phonebook After Import

As the default LDAP phonebook with DN “ou=pbx,dc=pbx,dc=com” cannot be edited or deleted in LDAP

phonebook section, users cannot import contacts that have "pbx" in the Phonebook DN field of the CSV file.

• Export phonebook to your computer from UCM6200 LDAP server

Select the checkbox for the LDAP phonebook and then click on “Export Selected Phonebook” to export the

selected phonebook. The exported phonebook can be used as a record or a sample CSV, VFC or XML file for

the users to add more contacts in it and import to the UCM6200 again.

Figure 42: Export Selected LDAP Phonebook

LDAP Client Configurations

The configuration on LDAP client is useful when you use other LDAP servers. Here we provide an example on

how to configure the LDAP client on the UCM.
