• Import phonebook from your computer to LDAP server
Click on “Import Phonebook” and a dialog will prompt as shown in the figure below.

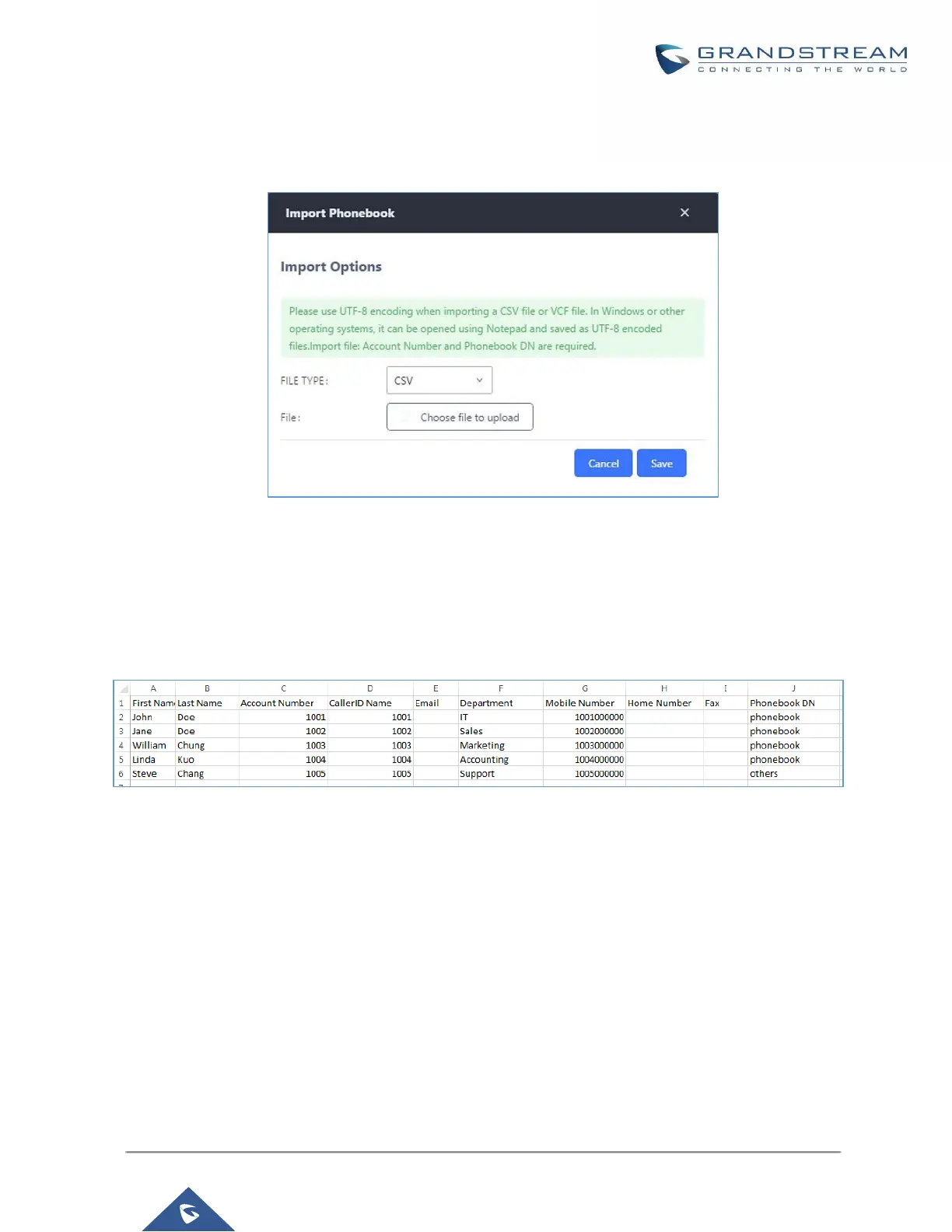

Figure 39: Import Phonebook
The file to be imported must be a CSV, VCF or XML file with UTF-8 encoding. Users can open the file with
Notepad and save it with UTF-8 encoding.
Here is an example of CSV file. Please note “Account Number” and “Phonebook DN” fields are required. Users
can export a phonebook file from the UCM's LDAP phonebook section and use it as a template.
Figure 40: Phonebook CSV File Format
The Phonebook DN field is the same “Phonebook Prefix” entry as when the user clicks on “Add” to create a new
phonebook. Therefore, if the user enters “phonebook” in “Phonebook DN” field in the CSV file, the actual
phonebook DN “ou=phonebook,dc=pbx,dc=com” will be automatically created by the UCM6200 once the CSV
file is imported.
In the CSV file, users can specify different phonebook DN fields for different contacts. If the phonebook DN
already exists on the UCM6200 LDAP Phonebook, the contacts in the CSV file will be added into the existing
phonebook. If the phonebook DN does not exist on the UCM6200 LDAP Phonebook, a new phonebook with this
phonebook DN will be created.
The sample phonebook CSV file in above picture will result in the following LDAP phonebook in the UCM6200.
