P a g e | 437

UCM6200 Series User Manual

Version 1.0.20.38

- The SuperAdmin user can click on on the “General_User” in order to enable/disable the custom

privilege from deleting their own recording files, changing SIP credentials and disabling voicemail

service in their user portal account.

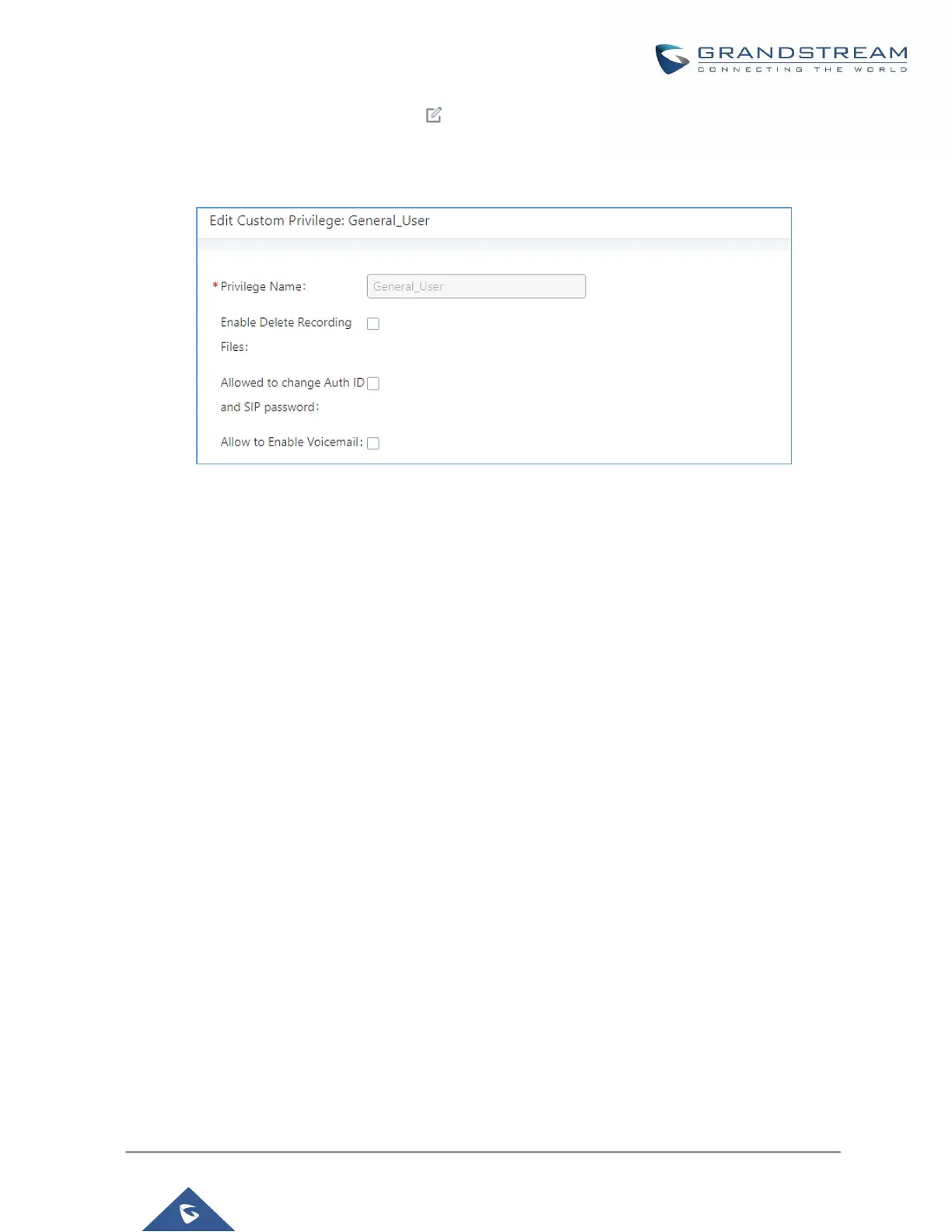

Figure 322: General User

• Custom Privilege

The Super Admin user can create users with different privileges. Following modules are available for privilege

customization.

- API Configuration

- Backup

- Callback

- Call Queue

- CDR Recording Files

- CDR Records

- CDR Statistics

- Conference

- Dial By Name

- DISA

- Emergency Calls

- Event List

- Extensions

- Outbound Routes

- Inbound Routes

- Fax/T.38

- Feature Codes

- IVR

- Paging/Intercom
