P a g e | 170

UCM6200 Series User Manual

Version 1.0.20.38

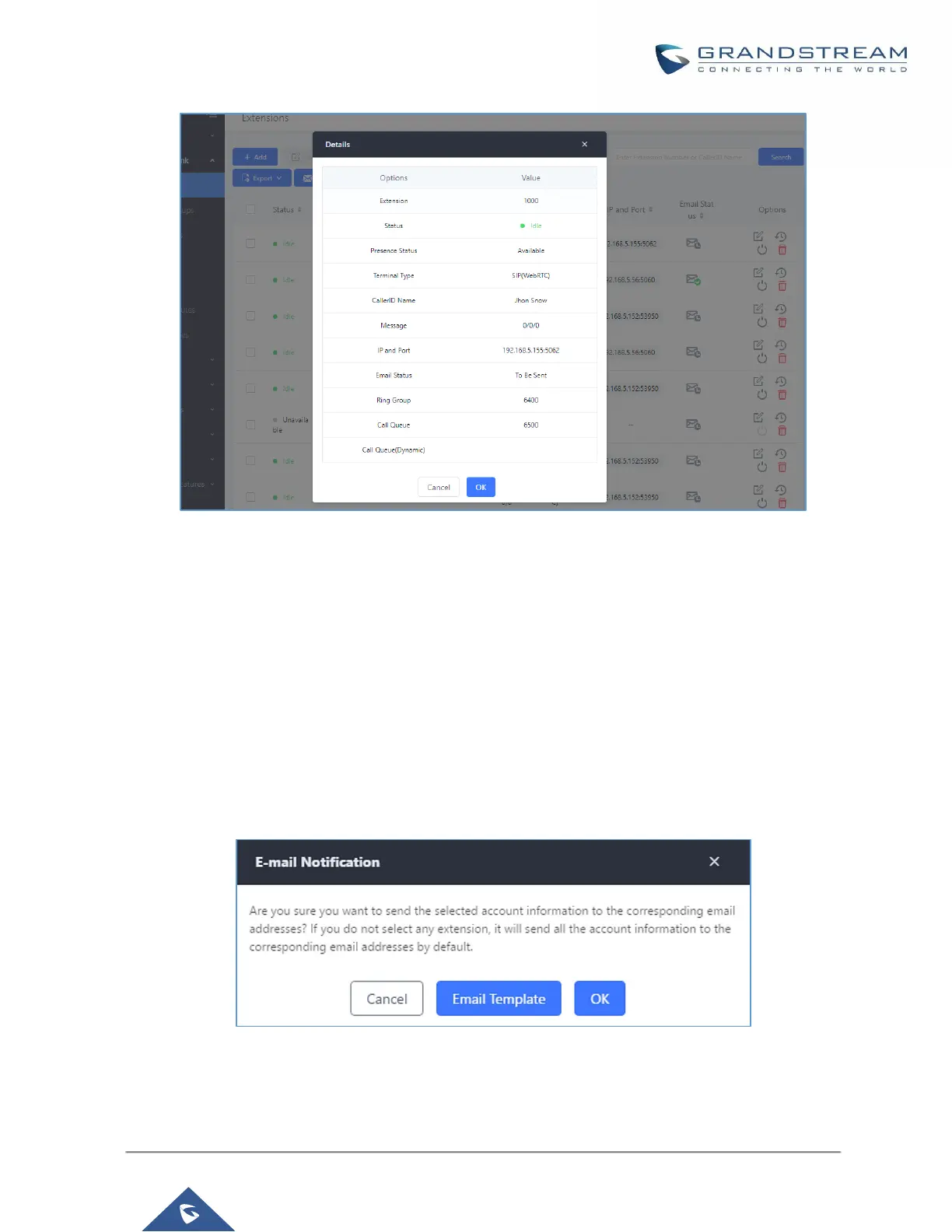

Figure 89: Extension Details

E-mail Notification

Users can request for their SIP acccount information via email. The system administrator can select the

extensions to send account information emails to and press the Email Notification button in the Extensions

page.

When click on “E-mail Notification” button, the following message will be prompted in the web page. Click on OK

to confirm sending the account information to all users’ Email addresses. After clicking the button, the following

prompt will appear:

Figure 90: E-mail Notification - Prompt Information
