P a g e | 218

UCM6200 Series User Manual

Version 1.0.20.38

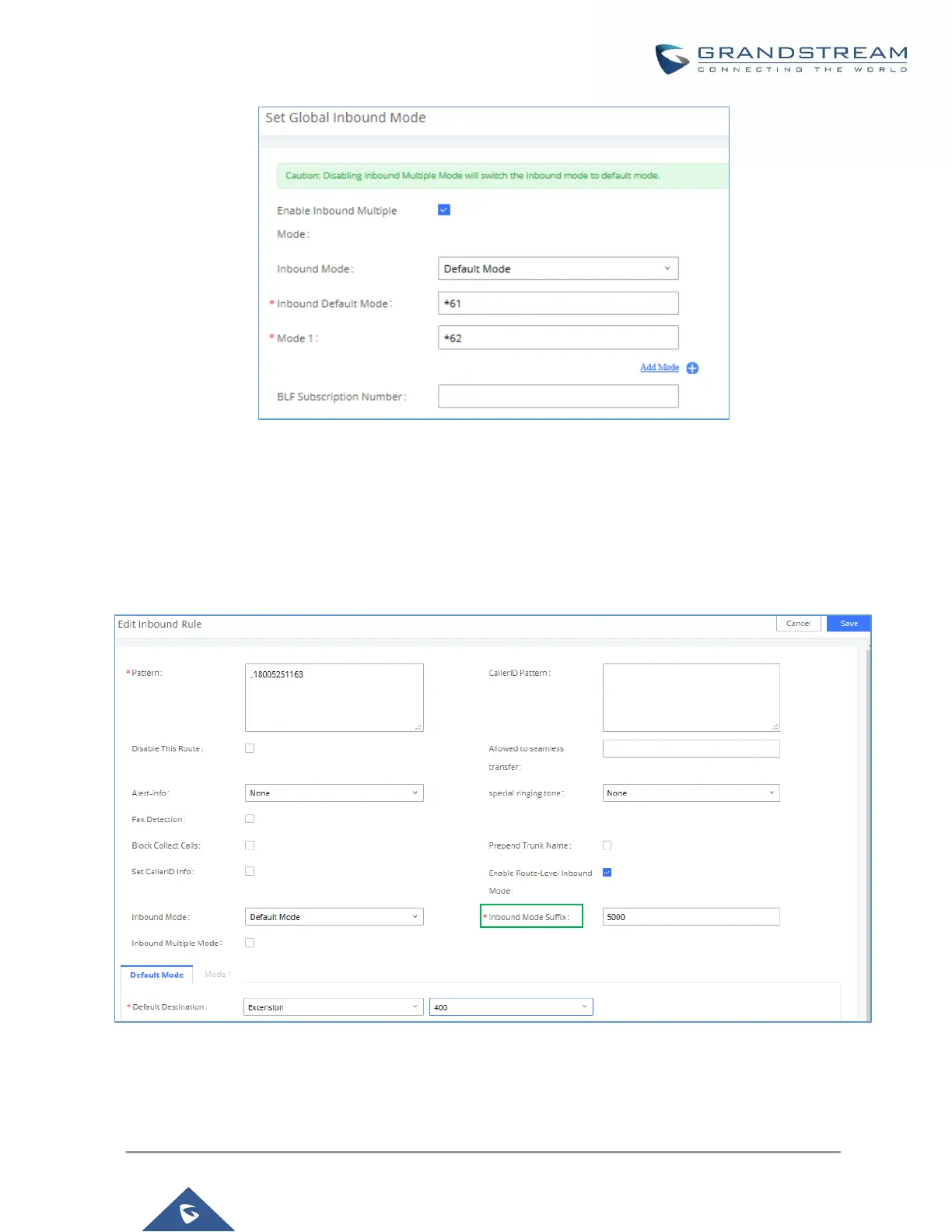

Figure 125: Inbound Route - Multiple Mode Feature Codes

Inbound Route: Route-Level Mode

In the UCM6200, users can enable Route-Level Inbound Mode to switch between different destinations for each

individual inbound route. The inbound Route-Level mode can be enabled under Inbound Route settings.

Figure 126: Inbound Route - Route-Level Mode
