P a g e | 360

UCM6200 Series User Manual

Version 1.0.20.38

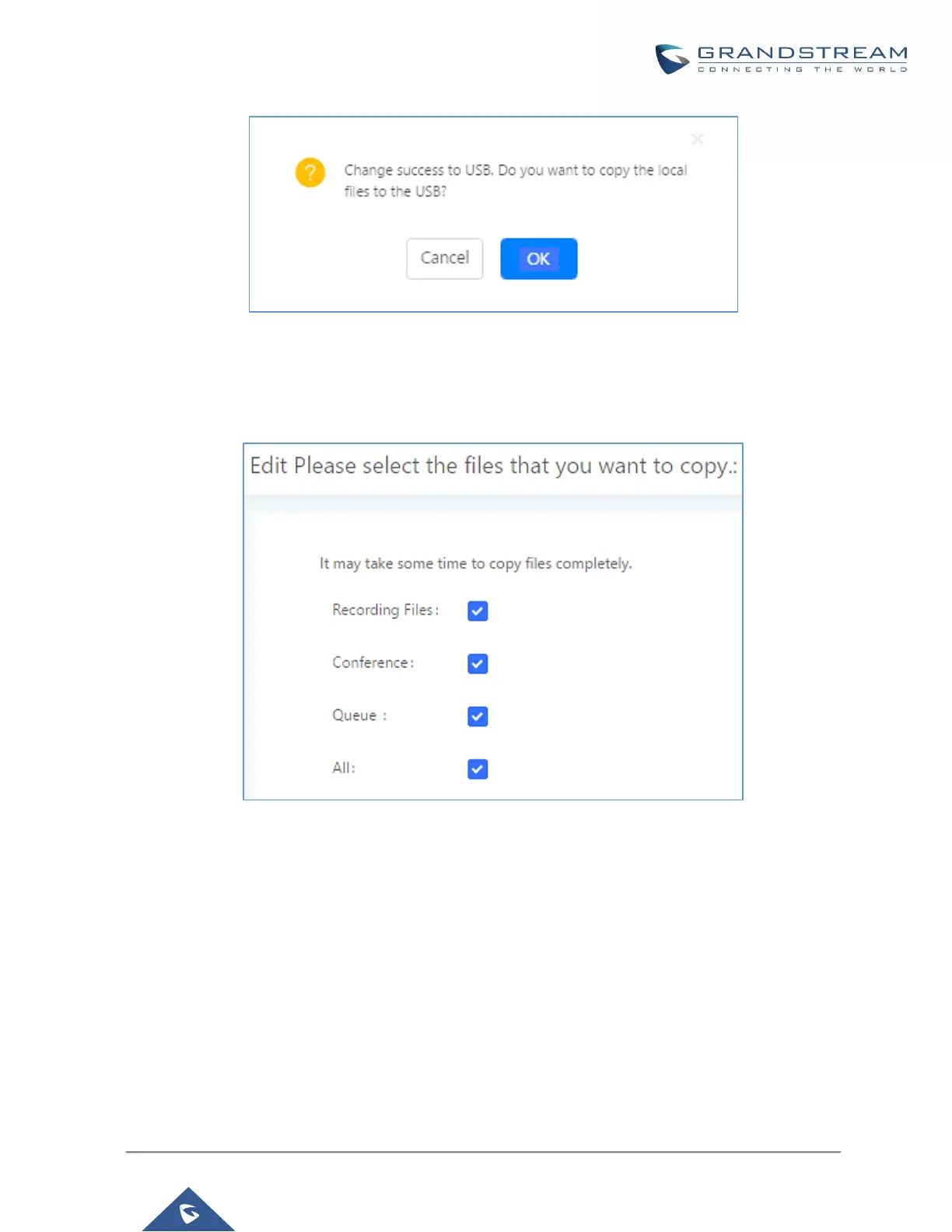

Figure 249: Recordings Storage Prompt Information

Click on “OK” to continue. The users will be prompted a new dialog to select the categories for the files to be

copied over.

Figure 250: Recording Storage Category

On the UCM6200, recording files are generated and exist in 3 categories: normal call recording files, conference

recording files, and call queue recording files. Therefore, users have the following options when select the

categories to copy the files to the external device:

- Recording Files: Copy the normal recording files to the external device.

- Conference: Copy the conference recording files to the external device.

- Queue: Copy the call queue recording files to the external device.

- All: Copy all recording files to the external device.
