P a g e | 268

UCM6200 Series User Manual

Version 1.0.20.38

Replace Display Name

If enabled, the UCM will replace the caller display name with the Ring Group

name the caller know whether the call is incoming from a direct extension or a

Ring Group.

Skip Busy Agent

If enabled calls to busy agents will be skipped and sent to the following

available ones. Default is enabled.

Enable Destination

If enabled, users could select extension, voicemail, ring group, IVR, call queue,

voicemail group as the destination if the call to the ring group has no answer.

Note: Voicemail Password and Email address (limited by 128 characters) are

required if voicemail is selected as the destination. Voicemail system will

mention if a voicemail is from a ring group.

Default Destination

The call would be routed to this destination if no one in this ring group answers

the call.

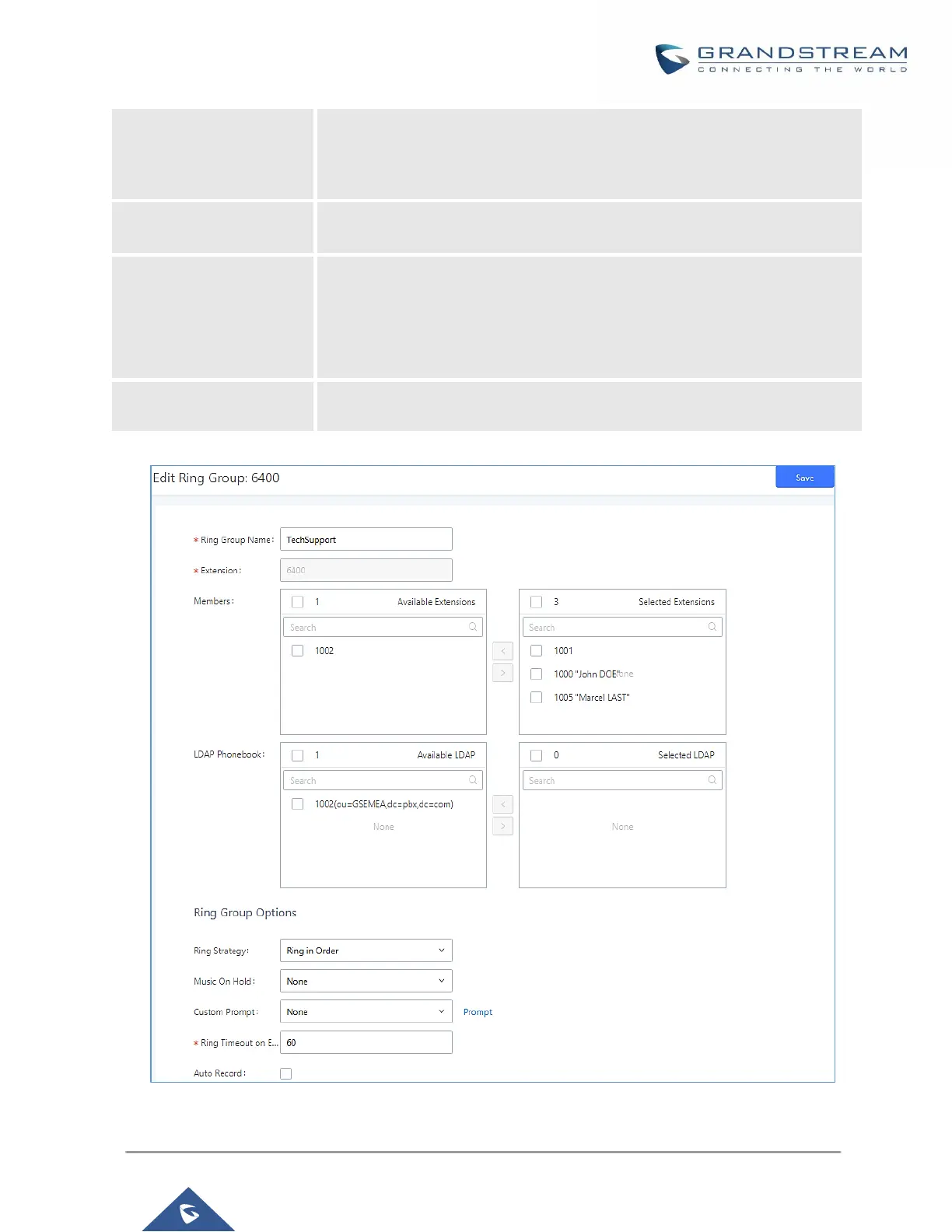

Figure 170: Ring Group Configuration
