Group Settings

Table 130: Group Settings

Name

Configure a name for the announcement group.

Note: Name cannot exceed 64 characters

Number

Configure the group number. Please see recommendation for Code Number for

reference.

Announcements Center feature can be found under Web GUI→Value-added Features→Announcements

Center. The following example demonstrates the usage of this feature.

1. Click to create new group.

2. Configure a name and number for the group.

3. Create a group number which is used with code to send voice message.

4. Select the extensions that will be ion the group.

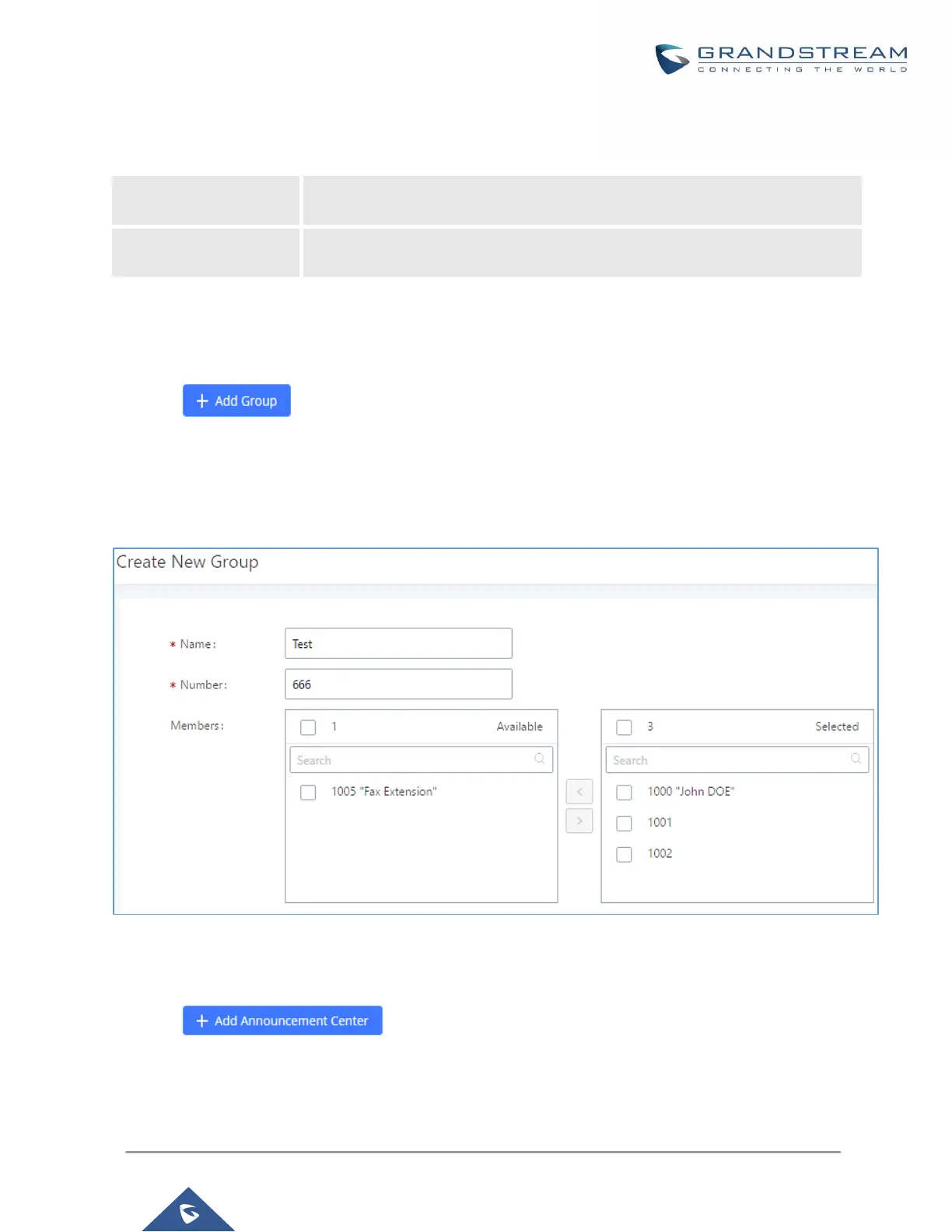

Figure 287: Announcements Center Group Configuration

Here, Group Test's number is 666 and has extensions 1000, 1001, and 1002 as members of the group.

1. Click to create a new Announcement Center.

2. Configure the Announcement Center name and code to associate with the custom prompt.
