P a g e | 247

UCM6200 Series User Manual

Version 1.0.20.38

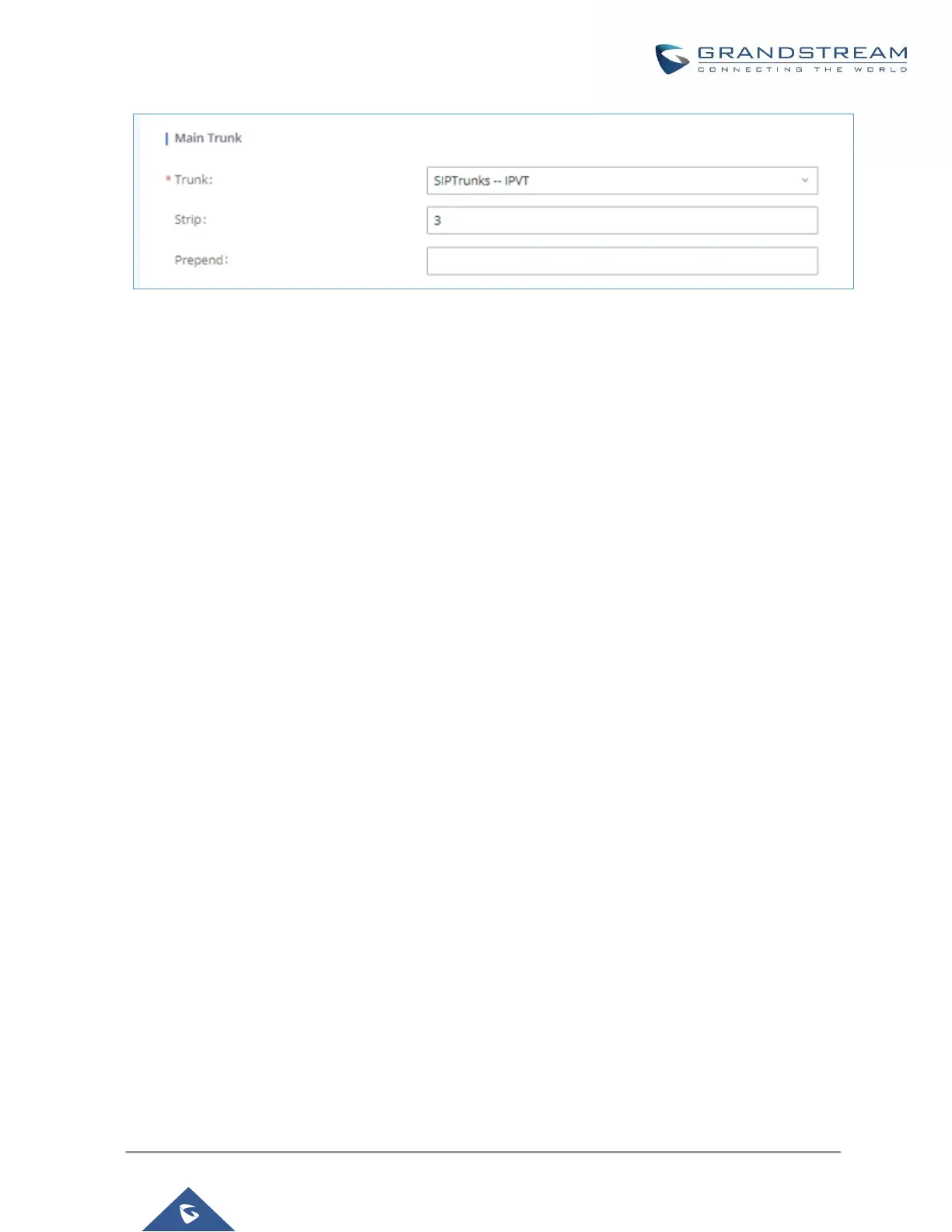

Figure 154 - IPVT Outbound Strip

In this example, the Strip field has “3” configured to remove the example unique code *99 from the dialed number

before the call is routed out to the IPVT server. Once this outbound route has been created, users can now use

a UCM extension to dial IPVT meeting rooms.

Note: An IPVT account can have only 1 SIP trunk peered to it.
