P a g e | 418

UCM6200 Series User Manual

Version 1.0.20.38

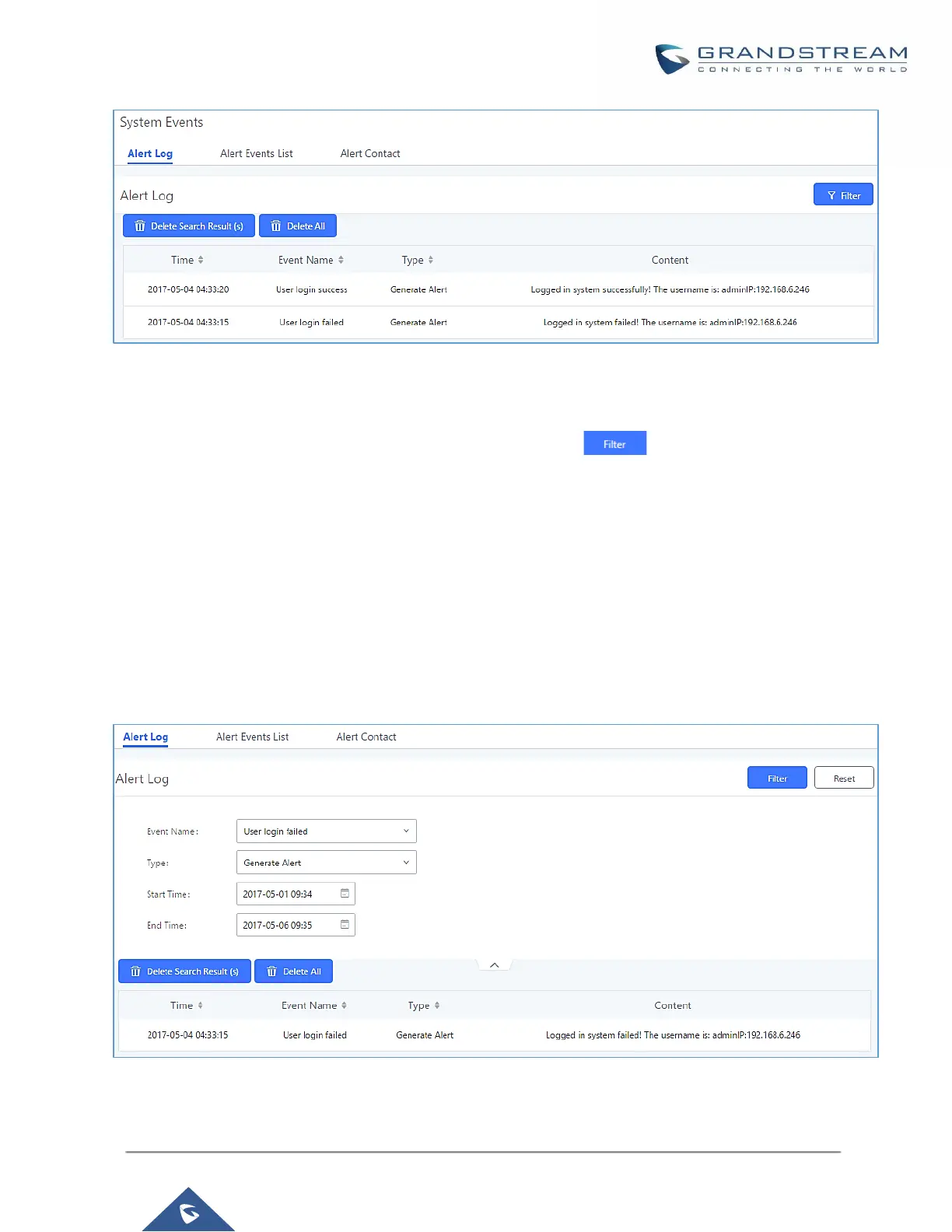

Figure 301: System Events→Alert Log

User could also filter alert logs by selecting a certain event category, type of alert log, and/or specifying a certain

time period. The matching results will be displayed after clicking on . Alert logs are classified into two

types by the system:

1. Generate Alert: Generated when alert events happen, for example, alert logs for disk usage exceeding the

alert threshold.

2. Restore to Normal: Generated when alert events being cleared, for example, logs for disk usage dropping

back below the alert threshold.

User could filter out alert logs of “Generate Alert” or “Restore to Normal” by specifying the type according to

need. The following figure shows an example of filtering out alert logs of type of “Restore to Normal”.

Figure 302: Filter for Alert Log
