UCM6200 Series User Manual

Version 1.0.20.38

WAKEUP SERVICE

The Wakeup service can be used to schedule a reminder/wakeup calls to extensions.

There are three ways to set up Wakeup Service:

• Using admin portal

• Using user portal

• Using feature code

Wakeup Service using Admin Login

1. Log in to the UCM as admin.

2. Wakeup service can be found under Web GUI→Value-added Features→Wakeup Service, click

on to create a new wakeup service. The following window will pop up.

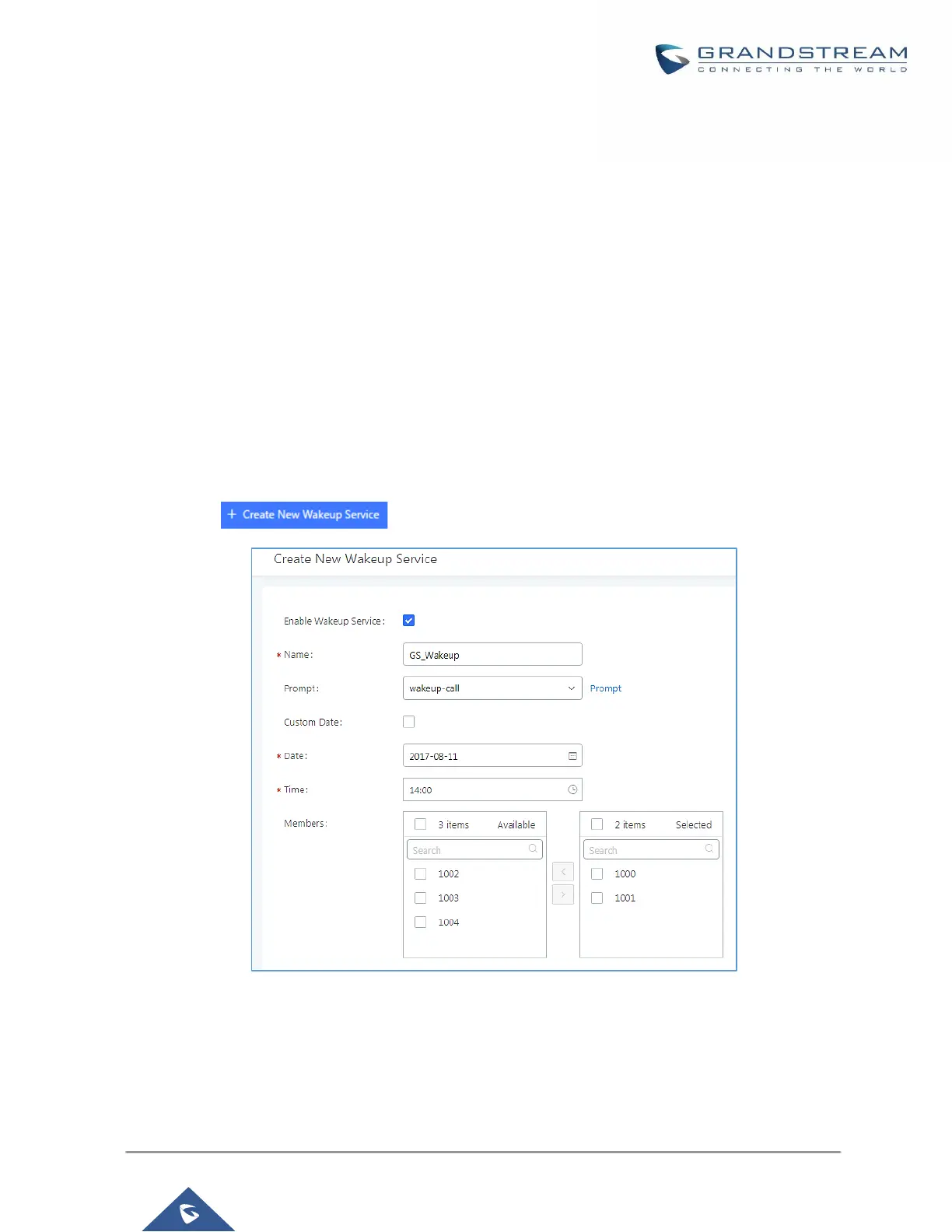

Figure 284: Create New Wakeup Service

3. Fill out the required fields and select the members to add to the wakeup group.
