Receiving Fax
Example Configuration to Receive Fax from PSTN Line
The following instructions describe how to use the UCM6200 to receive fax from PSTN line on the Fax machine
connected to the UCM6200 FXS port.
1. Connect Fax machine to the UCM6200 FXS port.
2. Connect PSTN line to the UCM6200 FXO port.
3. Go to Web GUI→Extension/Trunk page.
4. Create or edit the analog trunk for Fax as below.
Fax Mode: Make sure "Fax Mode" option is set to "None".

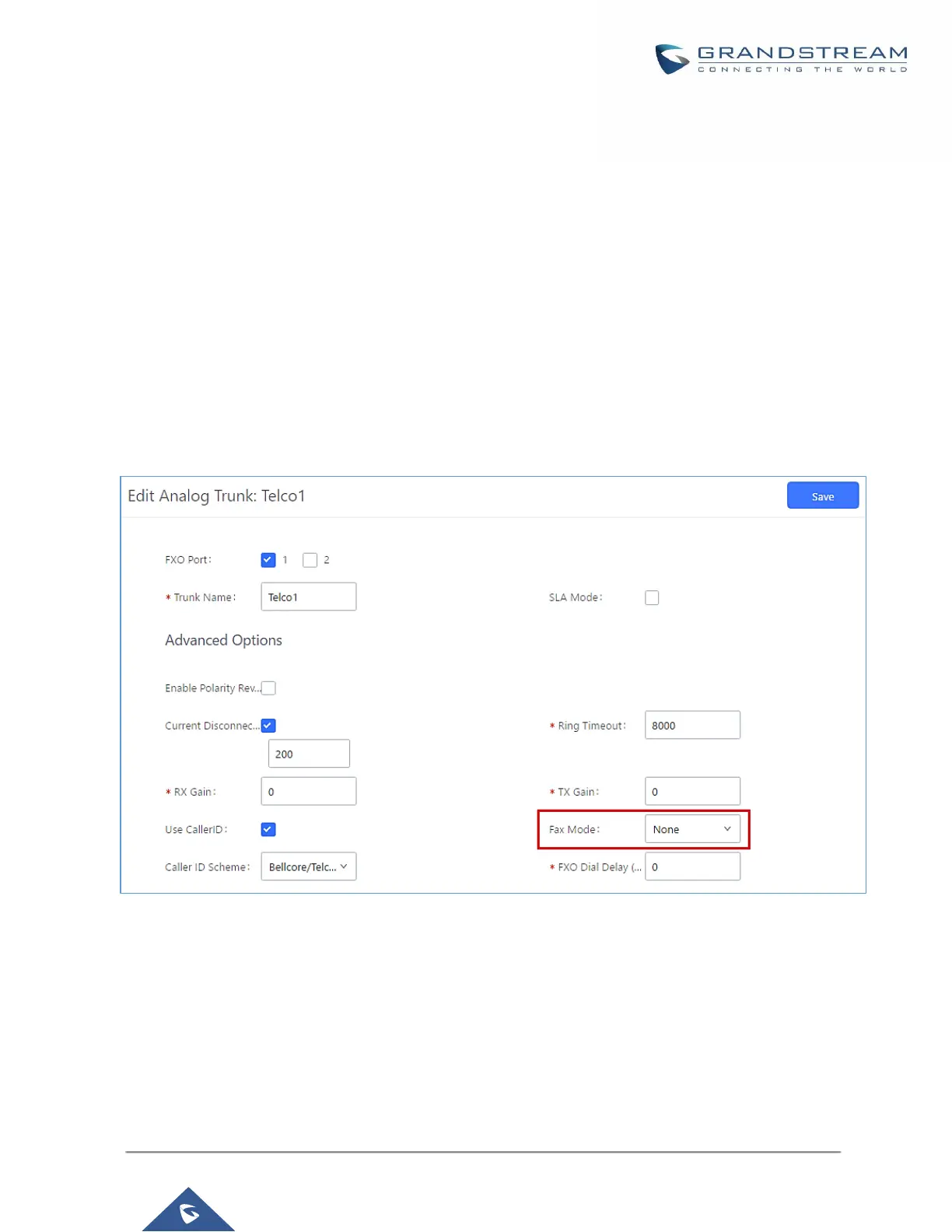

Figure 202: Configure Analog Trunk without Fax Detection
5. Go to UCM6200 Web GUI→Extension/Trunk→Extensions page.
6. Create or edit the extension for FXS port.
• Analog Station: Select FXS port to be assigned to the extension. By default, it is set to "None".
• Once selected, analog related settings for this extension will show up in "Analog Settings" section.
