P a g e | 180

UCM6200 Series User Manual

Version 1.0.20.38

PSTN Detection

The UCM6200 provides PSTN detection function to help users detect the busy tone, Polarity Reversal and

Current Disconnect by making a call from the PSTN line to another destination. The detecting call will be

answered and up for about 1 minute. Once done, the detecting result will show and can be used for the UCM6200

settings.

1. Go to UCM6200 Web GUI→Extension/Trunk→Analog Trunks page.

2. Click to edit the analog trunk created for the FXO port.

3. In the dialog window to edit the analog trunk, go to "Tone Settings" section and there are two methods to set

the busy tone.

• Tone Country. The default setting is "United States of America (USA)".

• PSTN Detection.

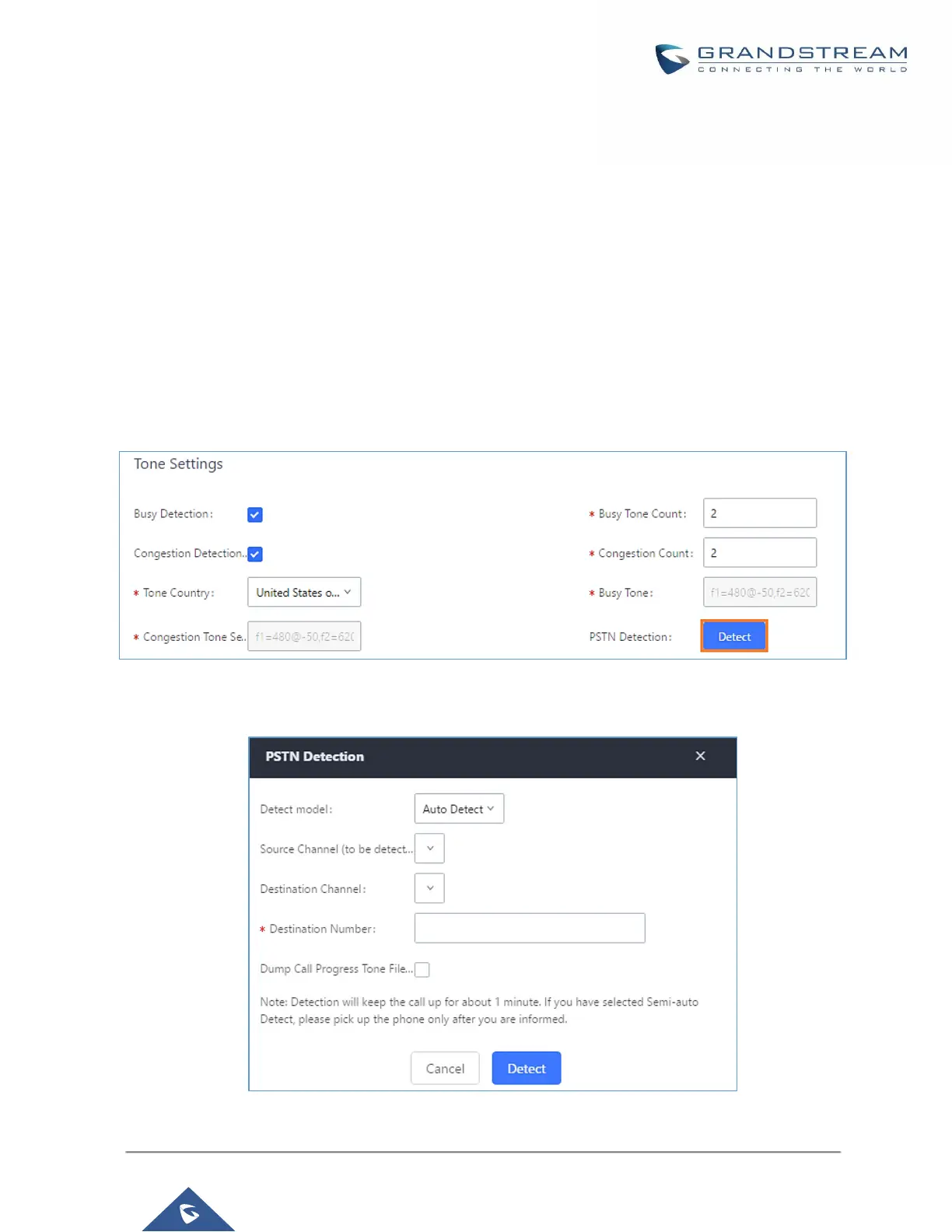

Figure 98: UCM6200 FXO Tone Settings

4. Click on "Detect" to start PSTN detection.

Figure 99: UCM6200 PSTN Detection
