P a g e | 315

UCM6200 Series User Manual

Version 1.0.20.38

SPEED DIAL

The UCM6200 supports Speed Dial feature that allows users to call specified destinations by pressing only 1-4

digits. This creates a system-wide speed dial access for all the extensions on the UCM6200.

To enable Speed Dial, on the UCM6200 Web GUI, go to page Web GUI→Call Features→Speed Dial.

User should first click on then create a speed dial extension and assign a destination to it.

Supported destinations are Extension, Conference Room, Video Conference Room, Voicemail, Voicemail

Group, IVR, Ring Group, Queue, Paging/Intercom Group, Fax, DISA, Dial by Name, Announcement, and

External Number.

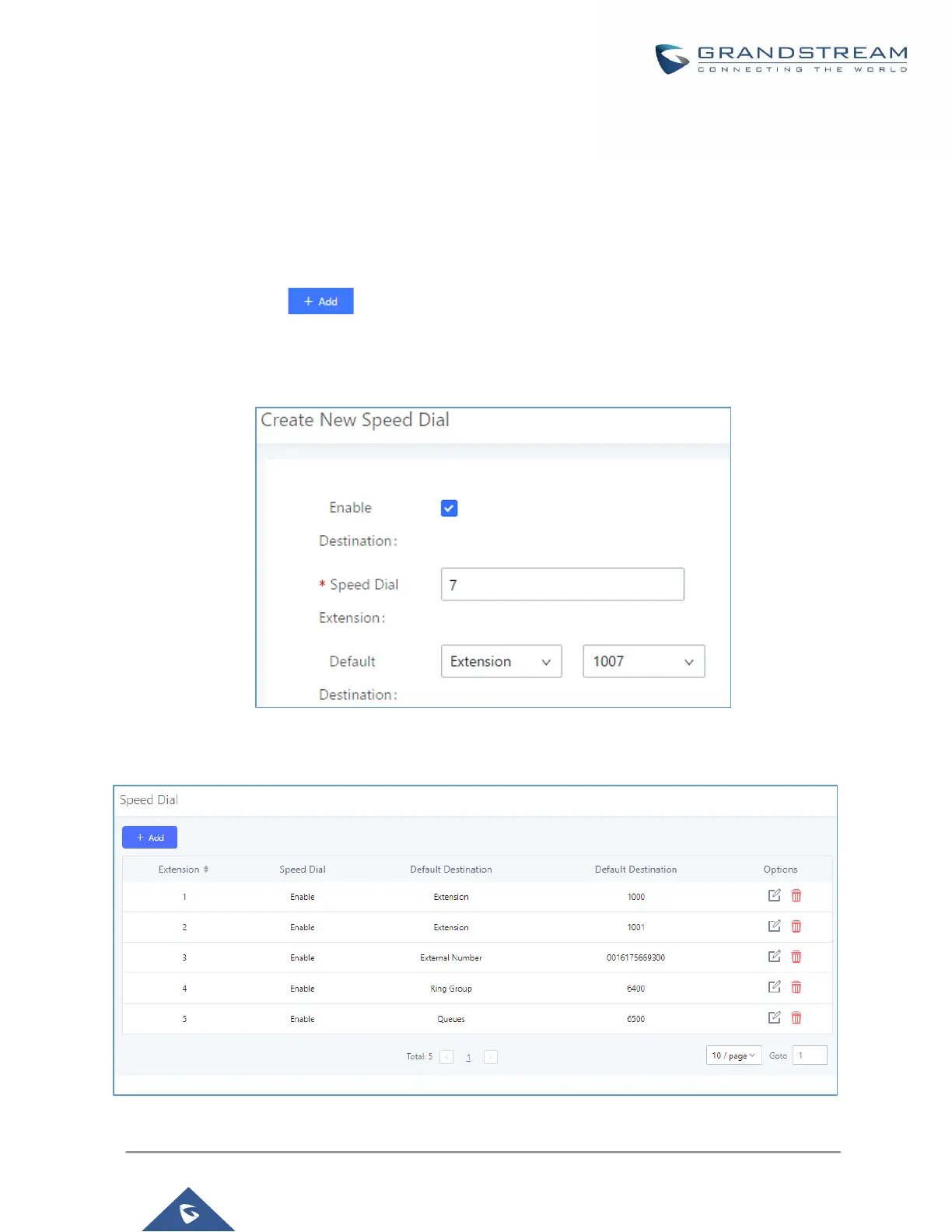

Figure 215: Speed Dial Destinations

Figure 216: List of Speed Dial
